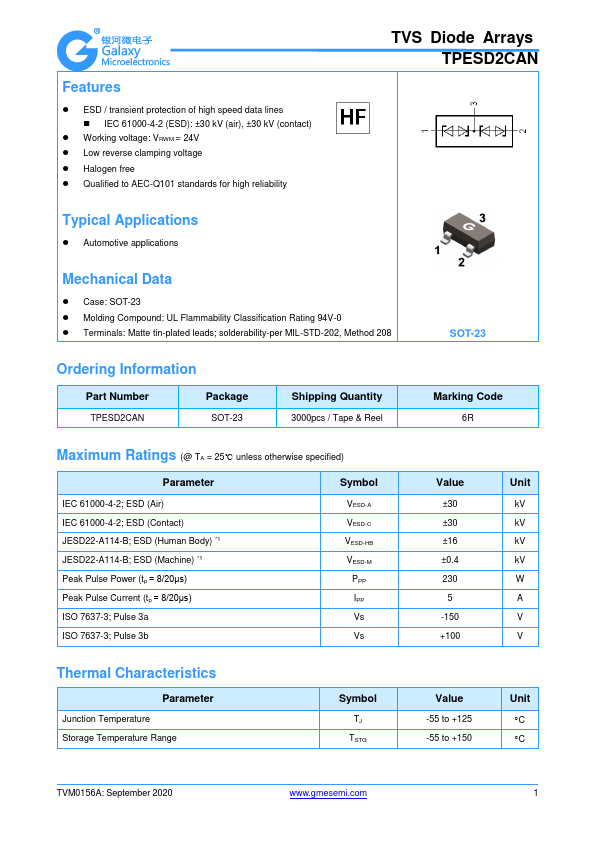

TPESD2CAN
TPESD2CAN is TVS Diode Arrays manufactured by Galaxy Microelectronics.
Features
- ESD / transient protection of high speed data lines
- IEC 61000-4-2 (ESD): ±30 k V (air), ±30 k V (contact)
- Working voltage: VRWM = 24V
- Low reverse clamping voltage
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
TVS Diode Arrays TPESD2CAN
Typical Applications
- Automotive applications
Mechanical Data
- Case: SOT-23
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
Ordering Information
Part Number
Package
SOT-23
Shipping Quantity
3000pcs / Tape & Reel
SOT-23
Marking Code
6R
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter
IEC 61000-4-2; ESD (Air) IEC 61000-4-2; ESD (Contact) JESD22-A114-B; ESD (Human Body)
- 1 JESD22-A114-B; ESD (Machine)
- 1 Peak Pulse Power (tp = 8/20μs) Peak Pulse Current (tp = 8/20μs) ISO 7637-3; Pulse 3a ISO 7637-3; Pulse 3b
Symbol
VESD-A VESD-C VESD-HB VESD-M
PPP IPP Vs Vs
Value
±30 ±30 ±16 ±0.4 230
5 -150 +100
Unit k V k V k V k V W A V V
Thermal Characteristics
Parameter
Junction Temperature Storage Temperature Range
Symbol
TJ...
