TUMD22N - Dual Digital Transistor

Features

  • Both the DTA143Z chip and DTC143Z chip in SOT-363 Package.
  • Reduces board space.
  • Reduces component count.
  • Surface mount package suited for automated assembly.
  • Halogen free.
  • Qualified to AEC-Q101 standards for high reliability Mechanical Data.
  • Case: SOT-363.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-363 Ordering Information Part Number TUMD22N Pac.

📥 Download Datasheet

Datasheet preview – TUMD22N

📁 Similar Datasheet

  • TUMNF16H - 55V N-Channel MOSFET (Eris)
Other Datasheets by GME

    Full PDF Text Transcription

    Click to expand full text

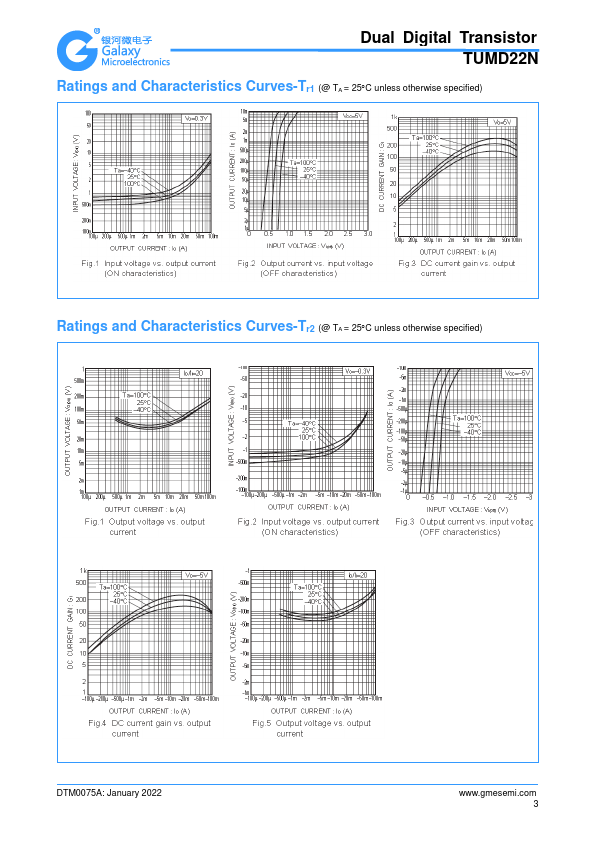

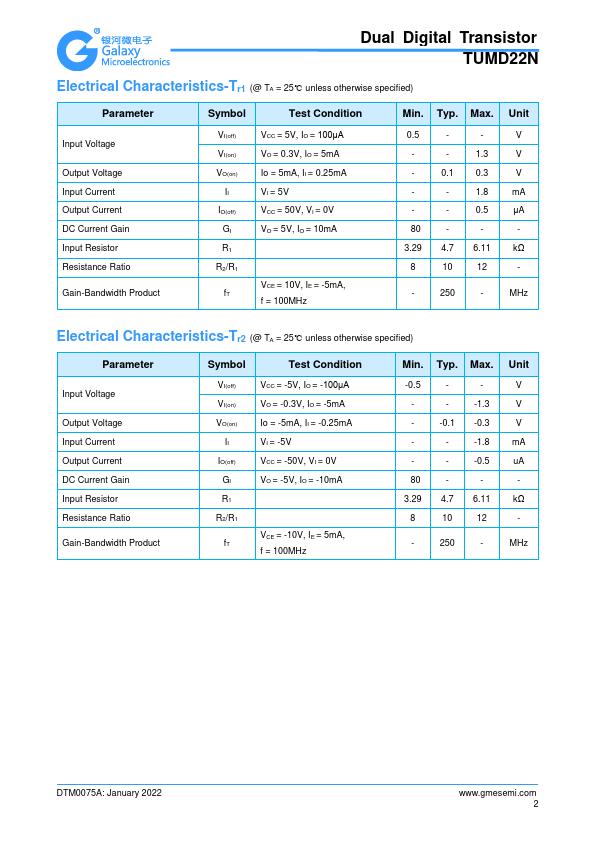

    Dual Digital Transistor TUMD22N Features  Both the DTA143Z chip and DTC143Z chip in SOT-363 Package  Reduces board space  Reduces component count  Surface mount package suited for automated assembly  Halogen free  Qualified to AEC-Q101 standards for high reliability Mechanical Data  Case: SOT-363  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-363 Ordering Information Part Number TUMD22N Package SOT-363 Shipping Quantity 3000 pcs / Tape & Reel Marking Code D22 Maximum Ratings (@ TA = 25℃ unless otherwise specified) Symbol Parameter VCC Supply Voltage VIN Input Voltage IO Output Current IC Collector Current Value Tr1 50 -5 to +30 100 100 Tr2 -50 -30 to +5 -100 -100
