BC807-16 Datasheet PNP Transistor

Manufacturer: GOODARK

Datasheet Details

Part number BC807-16
Manufacturer GOODARK
File Size 789.47 KB
Description PNP Transistor
Datasheet BC807-16-GOODARK.pdf

Key Features

  • Complementary to BC817.
  • Power dissipation of 300mW.
  • High stability and high reliability Mechanical Data.
  • SOT-23 small outline plastic package.
  • Epoxy UL: 94V-0.

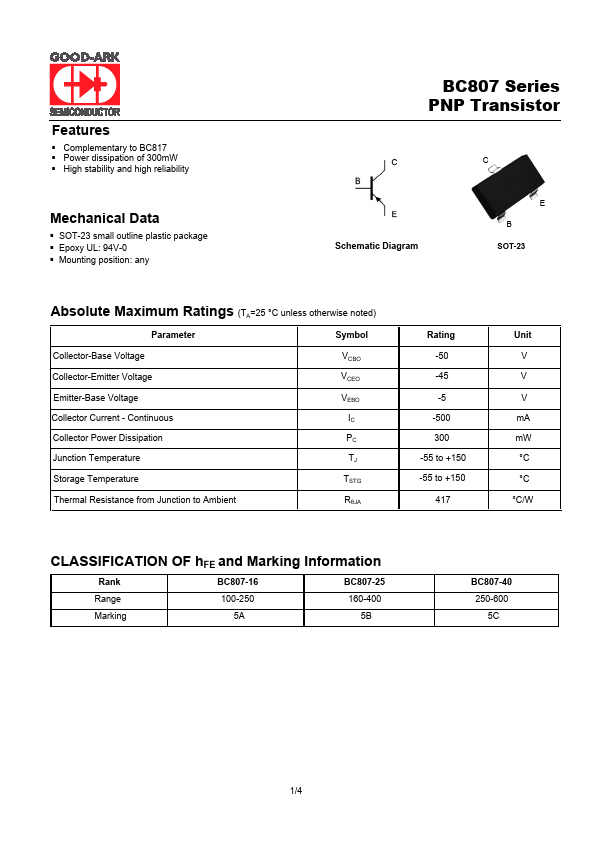

  • Mounting position: any BC807 Series PNP Transistor Schematic Diagram C E B SOT-23 Absolute Maximum Ratings (TA=25 °C unless otherwise noted) Parameter Symbol Collector-Base Voltage Collector-Emitter Voltage VCBO VCEO Emitter-Base Voltage Collector Current - Continuous Collector Power Dissipation Jun.
