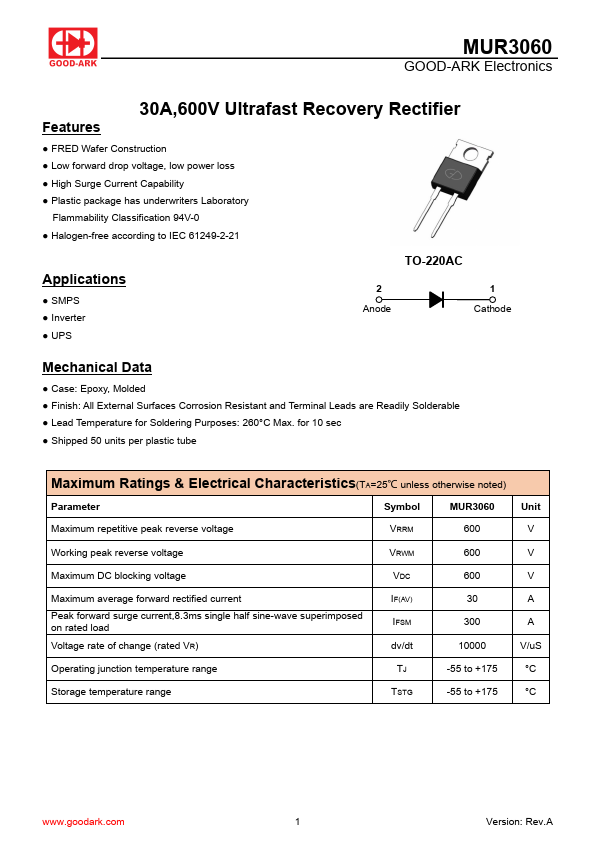

MUR3060
Features
30A,600V Ultrafast Recovery Rectifier
- FRED Wafer Construction
- Low forward drop voltage, low power loss
- High Surge Current Capability
- Plastic package has underwriters Laboratory
Flammability Classification 94V-0
- Halogen-free according to IEC 61249-2-21
Applications
- SMPS
- Inverter
- UPS
TO-220AC
2 Anode
1 Cathode
Mechanical Data
- Case: Epoxy, Molded
- Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
- Lead Temperature for Soldering Purposes: 260°C Max. for 10 sec
- Shipped 50 units per plastic tube
Maximum Ratings & Electrical Characteristics(TA=25℃ unless otherwise noted)
Parameter
Symbol
Unit
Maximum repetitive peak reverse voltage
VRRM
Working peak reverse voltage
VRWM
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current,8.3ms single half sine-wave superimposed on rated load
Voltage rate of change (rated VR)
IF(AV) IFSM...
