SBRF30100CT Datasheet | Good-Ark Semiconductor

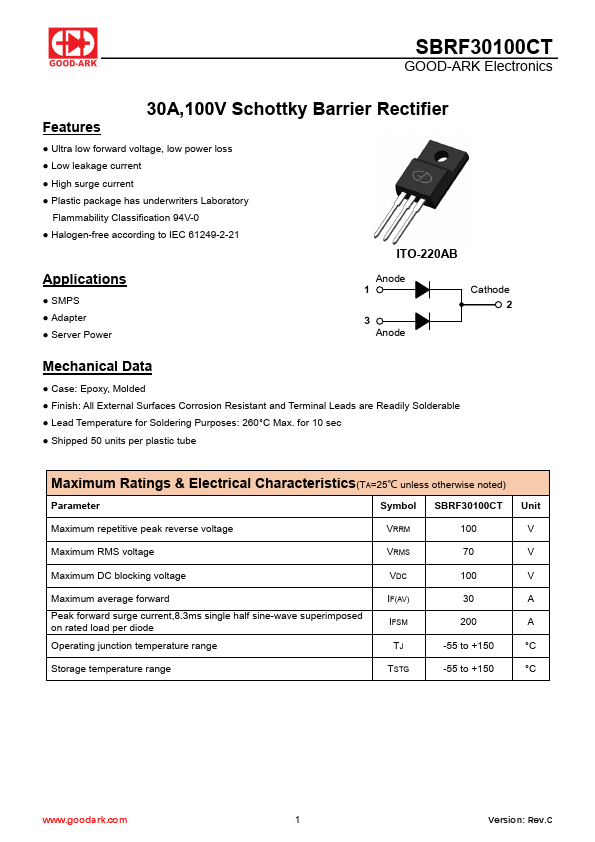

GOOD-ARK Electronics Features 30A,100V Schottky Barrier Rectifier - Ultra low forward voltage, low power loss - Low leakage current - High surge current - Plastic package has underwriters Laboratory Flammability Classification 94V-0 - Halogen-free according to IEC 61249-2-21 ITO-220AB Applications - SMPS - Adapter - Server Power Anode 1 3 Anode Cathode 2 Mechanical Data - Case: Epoxy, Molded - Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable - Lead Temperature for Soldering Purposes: 260°C Max. for 10 sec - Shipped 50 units per plastic tube Maximum Ratings & Electrical Characteristics(TA=25℃ unless otherwise noted) Parameter Symbol SBRF30100CT Unit Maximum repetitive peak reverse voltage VRRM Maximum RMS voltage VRMS Maximum DC blocking...
