G1548FH101GF-001

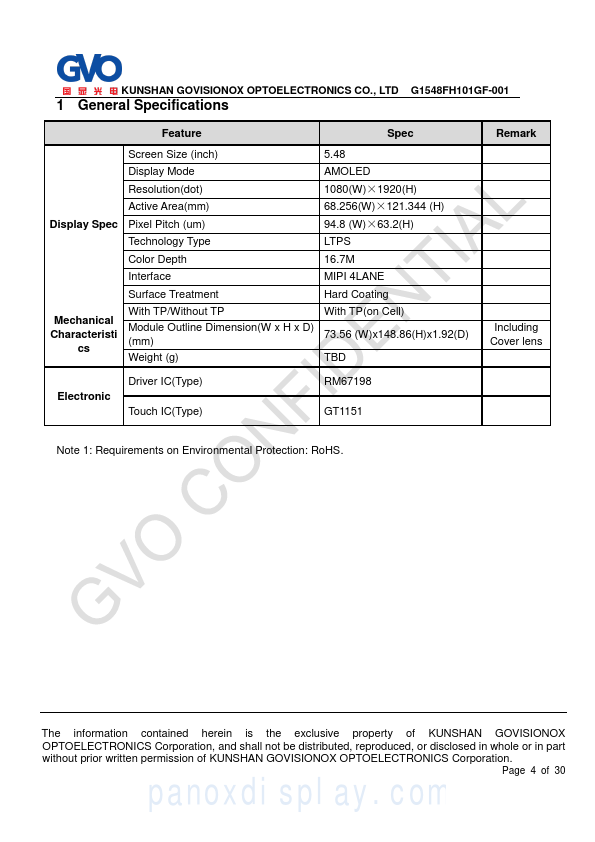

Feature
Spec
Screen Size (inch)
Display Mode
AMOLED
Resolution(dot)
1080(W)×1920(H)
Active Area(mm)
68.256(W)×121.344 (H)
Display Spec Pixel Pitch (um)
94.8 (W)×63.2(H)
Technology Type
LTPS
Color Depth
16.7M
Interface
MIPI 4LANE
Surface Treatment
Hard Coating
Mechanical Characteristi cs
With TP/Without TP Module Outline Dimension(W x H x D) (mm) Weight (g)
With TP(on Cell) 73.56 (W)x148.86(H)x1.92(D) TBD
Electronic
Driver IC(Type) Touch IC(Type)
RM67198 GT1151
Remark
Including Cover lens
Note 1: Requirements on Environmental Protection: Ro HS.
The information contained herein is the exclusive property of KUNSHAN GOVISIONOX OPTOELECTRONICS Corporation, and shall not be distributed, reproduced, or disclosed in whole or in part without prior written permission of KUNSHAN GOVISIONOX OPTOELECTRONICS Corporation.
Page 4 of 30 panoxdisplay.
KUNSHAN GOVISIONOX OPTOELECTRONICS CO., LTD G1548FH101GF-001

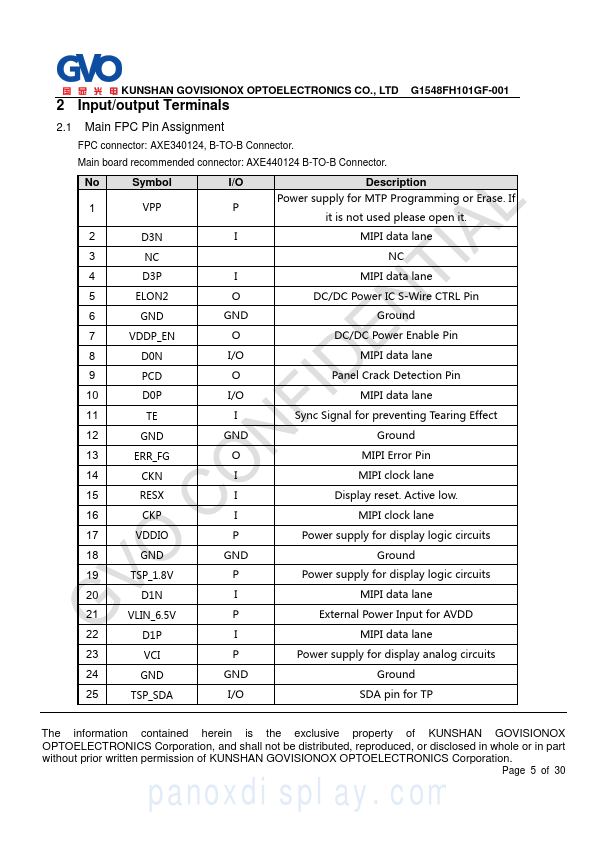

2 Input/output Terminals
2.1 Main FPC Pin Assignment
FPC...
