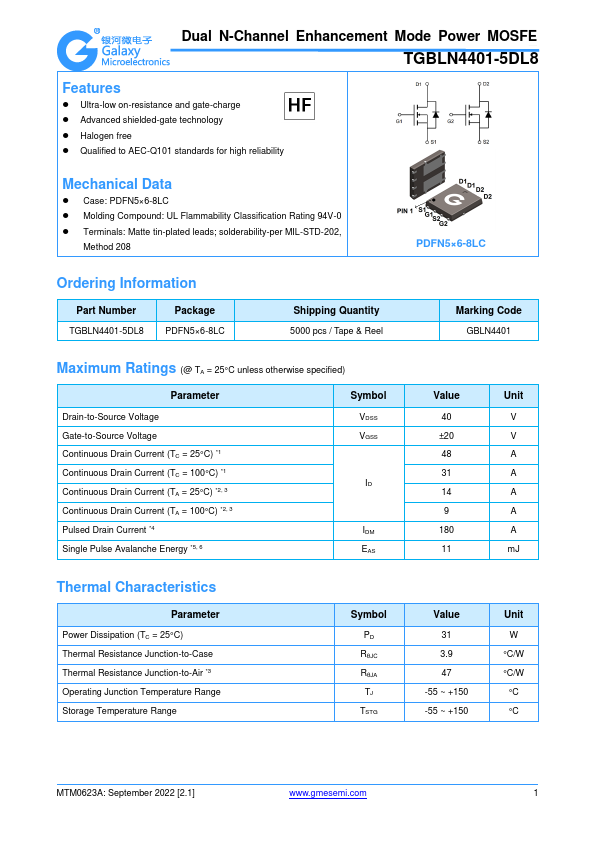

TGBLN4401-5DL8
Features
- Ultra-low on-resistance and gate-charge
- Advanced shielded-gate technology
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
Mechanical Data
- Case: PDFN5×6-8LC
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202,
Method 208
PDFN5×6-8LC
Ordering Information
Part Number TGBLN4401-5DL8
Package PDFN5×6-8LC
Shipping Quantity 5000 pcs / Tape & Reel
Marking Code GBLN4401
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TC = 25°C)
- 1 Continuous Drain Current (TC = 100°C)
- 1 Continuous Drain Current (TA = 25°C)
- 2, 3 Continuous Drain Current (TA = 100°C)
- 2, 3 Pulsed Drain Current
- 4 Single Pulse Avalanche Energy
- 5, 6
Symbol VDSS VGSS
IDM EAS
Value 40 ±20 48 31 14 9 180 11
Unit V V A A A A A m J
Thermal Characteristics
Parameter Power Dissipation (TC = 25°C) Thermal Resistance...
