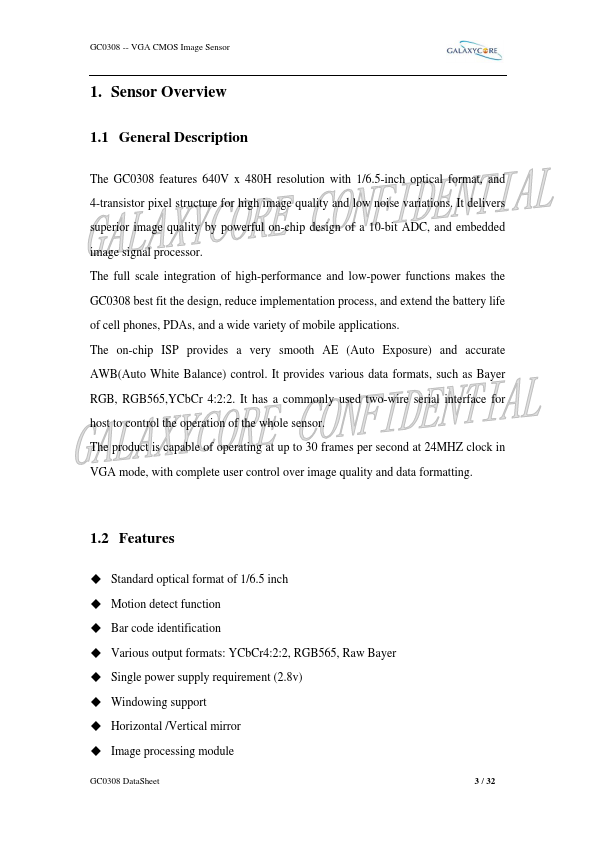

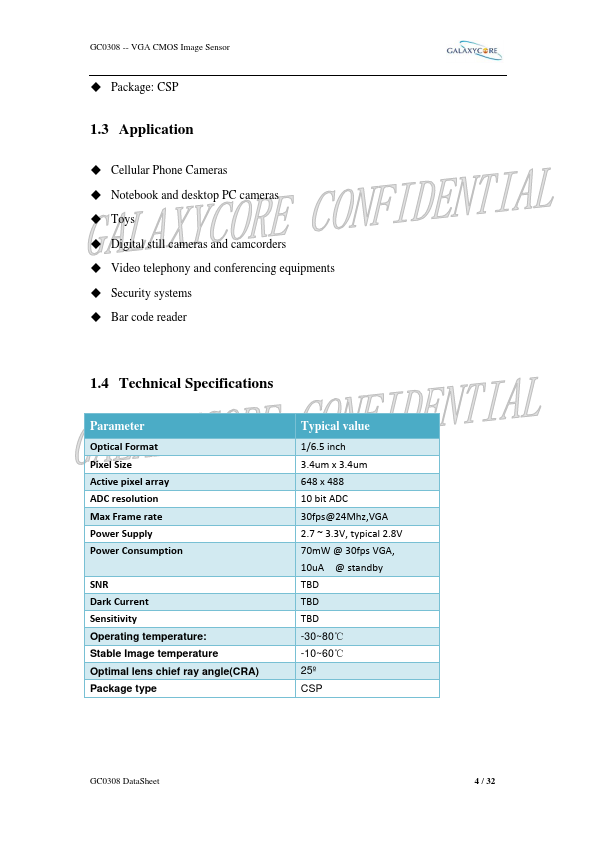

1/6.5’’ VGA CMOS Image Sensor GC0308 2010-01-28 . Galaxy Core Inc GC0308 -- VGA CMOS Image Sensor 1. Sensor Overview 1.1 General Description The GC0308 Features 640V x 480H resolution with 1/6.5-inch optical format, and 4-transistor pixel structure for high image quality and low noise variations. It delivers superior image quality by powerful on-chip design of a 10-bit ADC, and embedded image signal processor. The full scale integration of high-performance and low-power functions makes the GC0308 best fit the design, reduce implementation process, and extend the battery life of cell phones, PDAs, and a wide variety of mobile applications. The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB(Auto White Balance) control. It provides various data formats, such as Bayer RGB, RGB565,YCb Cr 4:2:2. It has a monly used two-wire serial interface for host to control the operation of the whole sensor. The product is capable of operating at up to 30 frames per second at 24MHZ clock in VGA mode, with plete user control over image quality and data formatting. 1.2 Features ‹ Standard optical format of 1/6.5 inch ‹ Motion detect function ‹ Bar code identification ‹ Various output formats: YCb Cr4:2:2, RGB565, Raw Bayer ‹ Single power supply requirement (2.8v) ‹ Windowing support ‹ Horizontal /Vertical mirror ‹ Image processing module GC0308 Data Sheet 3 / 32 GC0308 -- VGA CMOS Image Sensor ‹ Package: CSP 1.3 Application ‹ Cellular Phone Cameras ‹ Notebook and desktop PC cameras ‹ Toys ‹ Digital still cameras and camcorders ‹ Video telephony and conferencing equipments ‹ Security systems ‹ Bar code reader 1.4 Technical Specifications Parameter Optical Format Pixel Size Active pixel array ADC resolution Max Frame rate Power Supply Power Consumption SNR Dark Current Sensitivity Operating temperature: Stable Image temperature Optimal lens chief ray angle(CRA) Package type Typical value 1/6.5 inch 3.4um x 3.4um 648 x 488 10 bit ADC...
