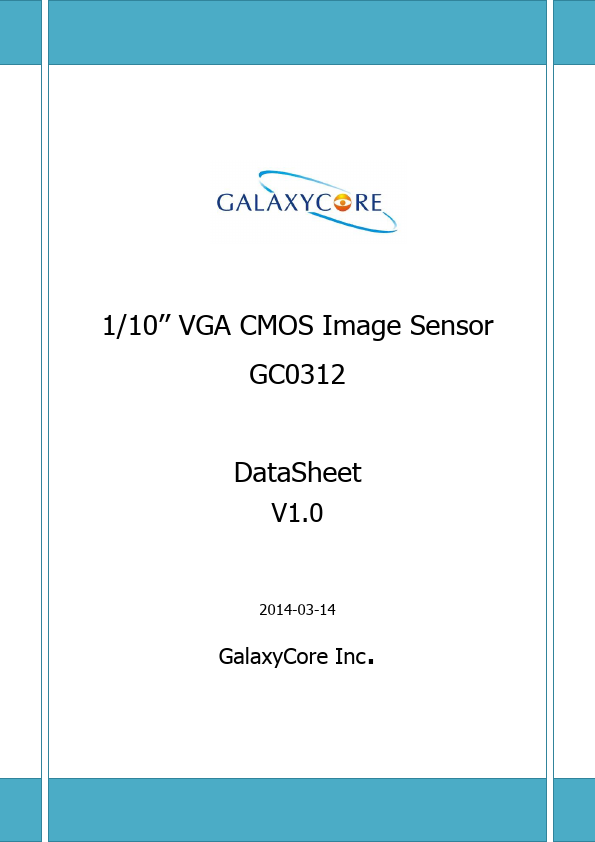

1/10’’ VGA CMOS Image Sensor GC0312 V1.0 2014-03-14 . Galaxy Core Inc 1. Sensor Overview GC0312 CMOS Image Sensor 1.1 General Description The GC0312 Features 640V x 480H resolution with 1/10-inch optical format, and 4-transistor pixel structure for high image quality and low noise variations. It delivers superior image quality by powerful on-chip design of a 10-bit ADC, and embedded image signal processor. The full scale integration of high-performance and low-power functions makes the GC0312 best fit the design, reduce implementation process, and extend the battery life of cell phones, PDAs, and a wide variety of mobile applications. The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB(Auto White Balance) control. It provides various data formats, such as Bayer RGB, RGB565, YCb Cr 4:2:2. It has a monly used two-wire serial interface for host to control the operation of the whole sensor. 1.2 Features - Standard optical format of 1/10 inch - Various output formats: YCb Cr4:2:2, RGB565, Raw Bayer - Power supply requirement: AVDD: 2.7~3.0V IOVDD: 1.7~3.0V - Windowing support - Horizontal/Vertical mirror - Image processing module - Package: CSP/COB GC0312 Data Sheet 4 / 33 1.3 Application - Cellular Phone Cameras - Notebook and desktop PC cameras - PDAs - Toys - Digital still cameras and camcorders - Video telephony and conferencing equipments - Security...
