GM66102 - 1A ULTRA LOW-DROPOUT VOLTAGE REGULATORS

Datasheet Summary

Description

The GM66100/1/2 series are 1A ultra low-dropout linear voltage regulators that provide low-voltage, high output current from an extremely small package.

The GM66100/1/2 offers extremely low dropout (typically 410 m V at 1A) and low ground current (typically 12mA at 1A).

Features

Fixed and adjustable output voltages Typical 410mV Dropout Voltage @ 1A 1A minimum guaranteed output current Accurate 1% Guaranteed Tolerance Current limiting and thermal shutdown Reverse-battery Protection Reversed leakage protection Fast Transient Response.

Datasheet Details

Part number	GM66102
Manufacturer	Gamma Microelectronics
File Size	181.68 KB
Description	1A ULTRA LOW-DROPOUT VOLTAGE REGULATORS
Datasheet	GM66102 Datasheet

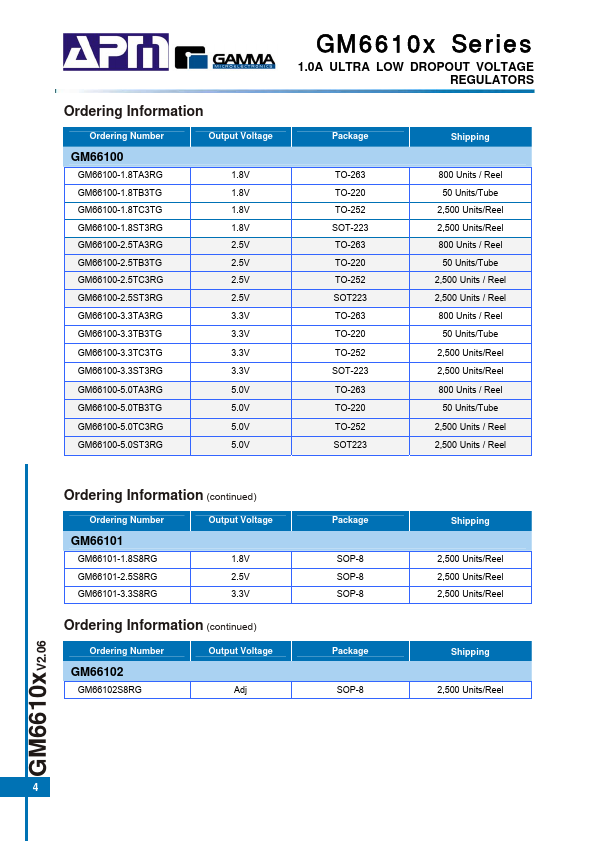

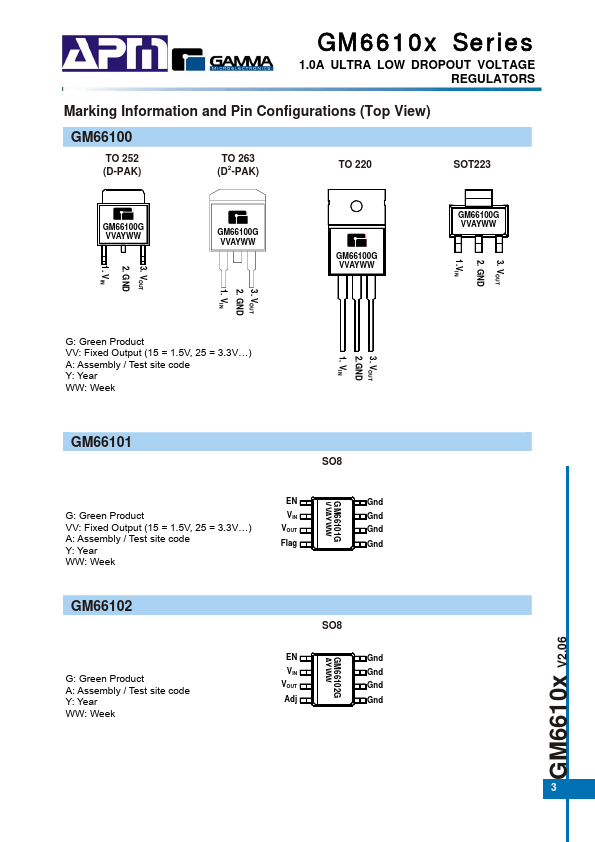

Additional preview pages of the GM66102 datasheet.

📁 Similar Datasheet

GM66100 - 1A ULTRA LOW-DROPOUT VOLTAGE REGULATORS (Gamma)

GM66101 - 1A ULTRA LOW-DROPOUT VOLTAGE REGULATORS (Gamma)

GM6603 - PRECISION LINEAR REGULATORS (Gamma)

GM6605 - PRECISION LINEAR REGULATORS (Gamma)

gm6010 - Digital TV Controller (Genesis)

gm6015 - Digital TV Controller (Genesis)

GM6155 - 150mA LOW - NOISE LDO REGULATOR (Gamma)

GM6201 - CMOS Positive Voltage Regulator (GTM)

GM62093A - 12 x 8 CROSSPOINT SWITCH (Hynix Semiconductor)

GM6250 - ULTRA - LOW DROPOUT POSITIVE VOLTAGE REGULATOR (Gamma)

Full PDF Text Transcription

Click to expand full text

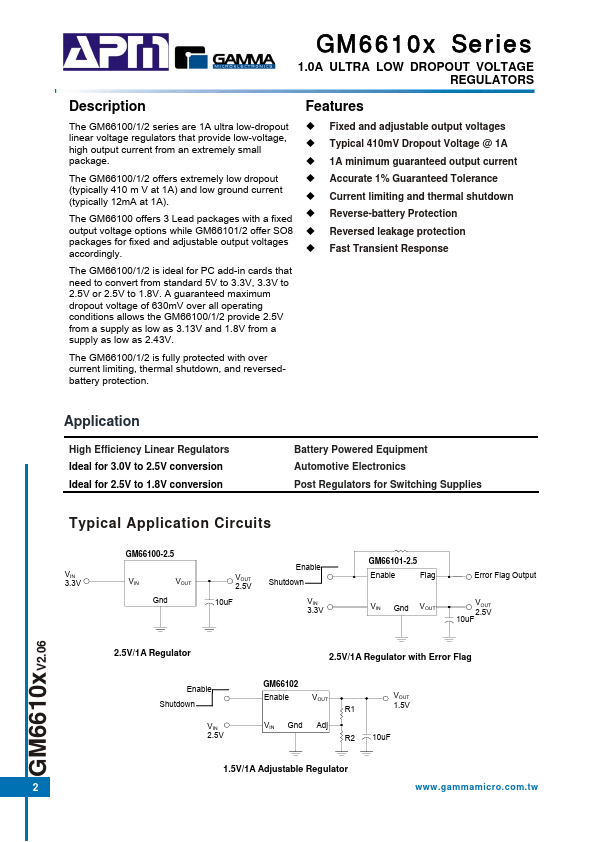

GM6610x Series 1.0A ULTRA LOW DROPOUT VOLTAGE REGULATORS Description The GM66100/1/2 series are 1A ultra low-dropout linear voltage regulators that provide low-voltage, high output current from an extremely small package. The GM66100/1/2 offers extremely low dropout (typically 410 m V at 1A) and low ground current (typically 12mA at 1A). The GM66100 offers 3 Lead packages with a fixed output voltage options while GM66101/2 offer SO8 packages for fixed and adjustable output voltages accordingly. The GM66100/1/2 is ideal for PC add-in cards that need to convert from standard 5V to 3.3V, 3.3V to 2.5V or 2.5V to 1.8V. A guaranteed maximum dropout voltage of 630mV over all operating conditions allows the GM66100/1/2 provide 2.5V from a supply as low as 3.13V and 1.8V from a supply as low as 2.
