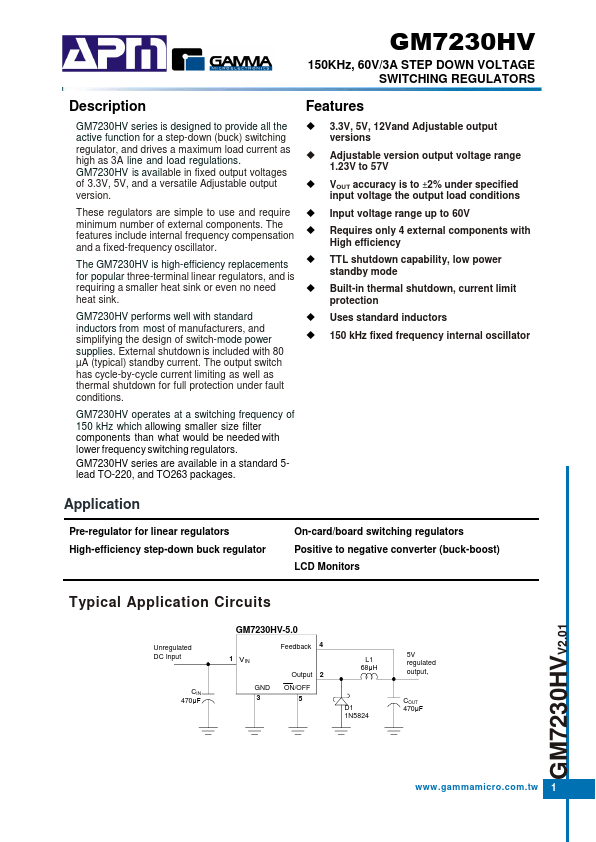

GM7230HV Datasheet PDF (150KHz 60V/3A STEP DOWN VOLTAGE SWITCHING REGULATORS)

GM7230HV - 150KHz 60V/3A STEP DOWN VOLTAGE SWITCHING REGULATORS

Features

GM7230HV series is designed to provide all the.
3.3V, 5V, 12Vand Adjustable output active function for a step-down (buck) switching versions regulator, and drives a maximum load current as high as 3A line and load regulations. GM7230HV is available in fixed output voltages.
Adjustable version output voltage range 1.23V to 57V of 3.3V, 5V, and a versatile Adjustable output version.
VOUT accuracy is to ±2% under specified input voltage the output load conditions These regu.

Datasheet Details

Part number	GM7230HV
Manufacturer	Gamma
File Size	458.33 KB
Description	150KHz 60V/3A STEP DOWN VOLTAGE SWITCHING REGULATORS
Datasheet	GM7230HV Datasheet

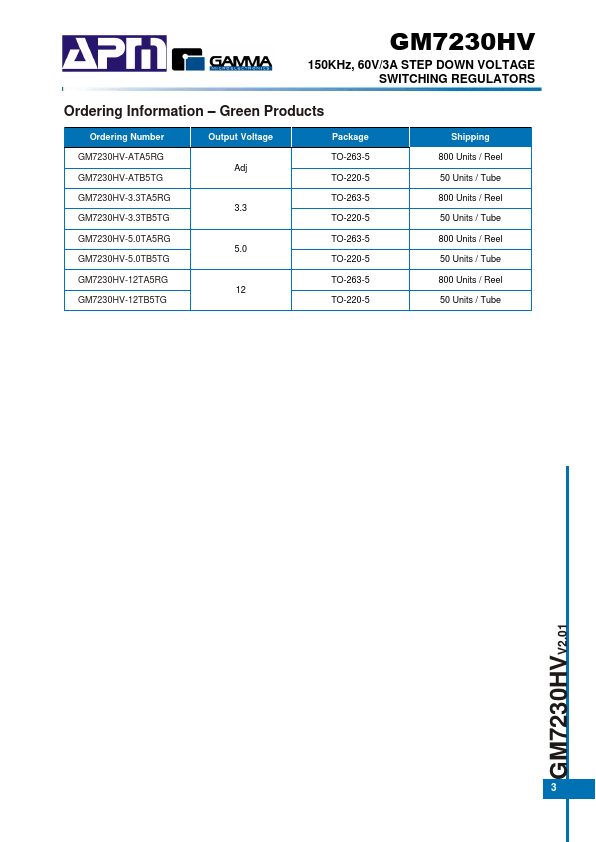

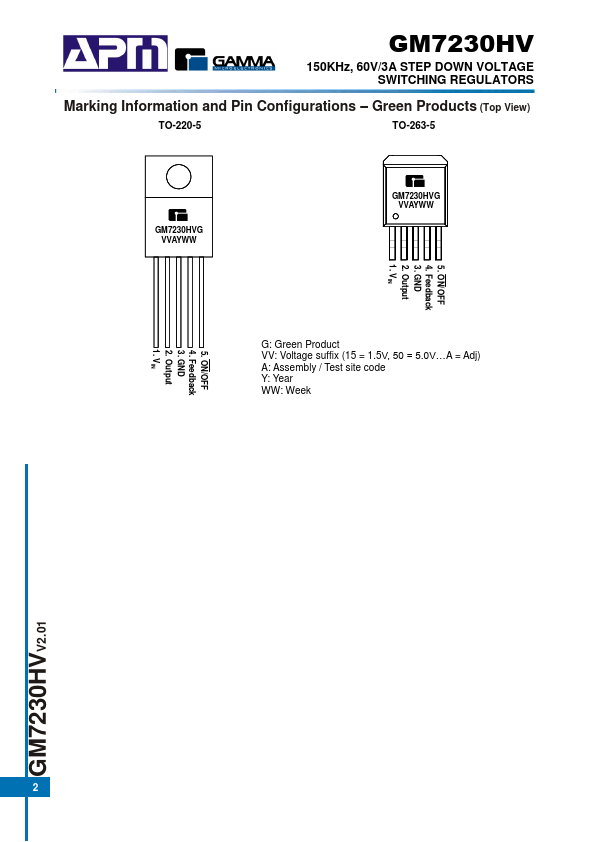

Additional preview pages of the GM7230HV datasheet.

📁 Similar Datasheet

GM7221 - GM7221 (ETC)

GM72V161621ELT - 524288 word x 16 Bit x 2 Bank SDRAM (LG)

GM72V161621ET - 524288 word x 16 Bit x 2 Bank SDRAM (LG)

GM72V661641D - 1M word x 16-Bit x 4 Bank SDRAM (LG Semicon)

GM72V661641DI - 1M word x 16-Bit x 4 Bank SDRAM (LG Semicon)

GM72V661641DLI - 1M word x 16-Bit x 4 Bank SDRAM (LG Semicon)

GM72V66441CT-10 - 4M x 4-Bit x 4 Bank SDRAM (LG Semicon)

GM72V66441CT-7 - 4M x 4-Bit x 4 Bank SDRAM (LG Semicon)

Full PDF Text Transcription

Click to expand full text

GM7230HV 150KHz, 60V/3A STEP DOWN VOLTAGE SWITCHING REGULATORS Description Features GM7230HV series is designed to provide all the  3.3V, 5V, 12Vand Adjustable output active function for a step-down (buck) switching versions regulator, and drives a maximum load current as high as 3A line and load regulations. GM7230HV is available in fixed output voltages  Adjustable version output voltage range 1.23V to 57V of 3.3V, 5V, and a versatile Adjustable output version.  VOUT accuracy is to ±2% under specified input voltage the output load conditions These regulators are simple to use and require  minimum number of external components. The features include internal frequency compensation  and a fixed-frequency oscillator.
