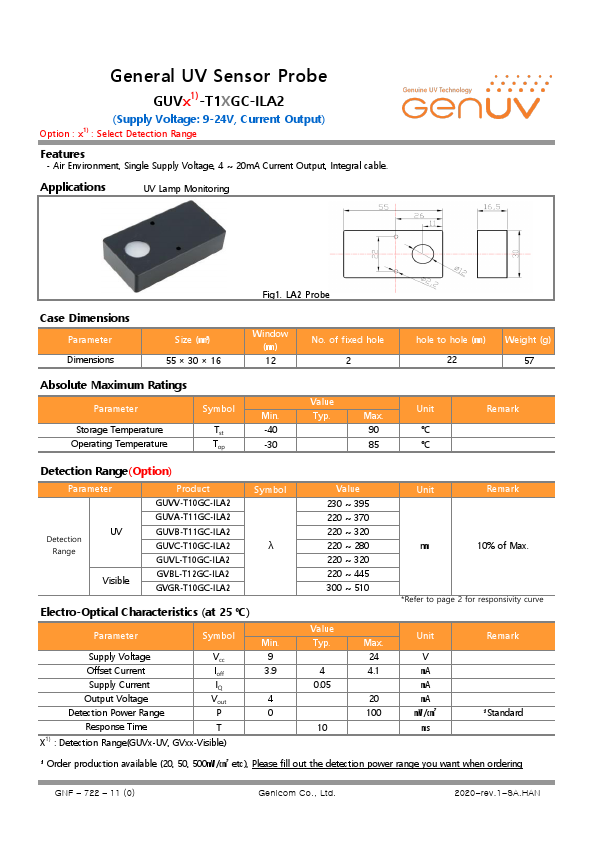

GVBL-T12GC-ILA2
GVBL-T12GC-ILA2 is General UV Sensor Probe manufactured by Genicom.
General UV Sensor Probe
GUVx1)-T1XGC-ILA2
(Supply Voltage: 9-24V, Current Output)
Option : x1) : Select Detection Range
Features
- Air Environment, Single Supply Voltage, 4 ~ 20m A Current Output, Integral cable.
Applications
UV Lamp Monitoring
Fig1. LA2 Probe
Case Dimensions
Parameter Dimensions
Size (㎣) 55 × 30 × 16
Window (㎜) 12
No. of fixed hole 2 hole to hole (㎜) 22
Weight (g)...
