GigaDevice GD32F130K4U6
The GD32F130xx device belongs to the value line of GD32 MCU family. It is a 32-bit generalpurpose microcontroller based on the high performance Arm® Cortex®-M3 RISC core with best ratio in terms of processing power, reduced power consumption and peripheral set. The Cortex®-M3 is a next generation processor core which is tightly coupled with a Nested Vectored Interrupt Controller (NVIC), SysTick timer and advanced debug support.| Part No. | GD32F130K4U6 |
|---|---|
| Datasheet | GD32F130K4U6 Download |
| Manufacturer |  GigaDevice |
| Description | ARM Cortex-M3 32-bit MCU |
| Buy | Stock & Price |

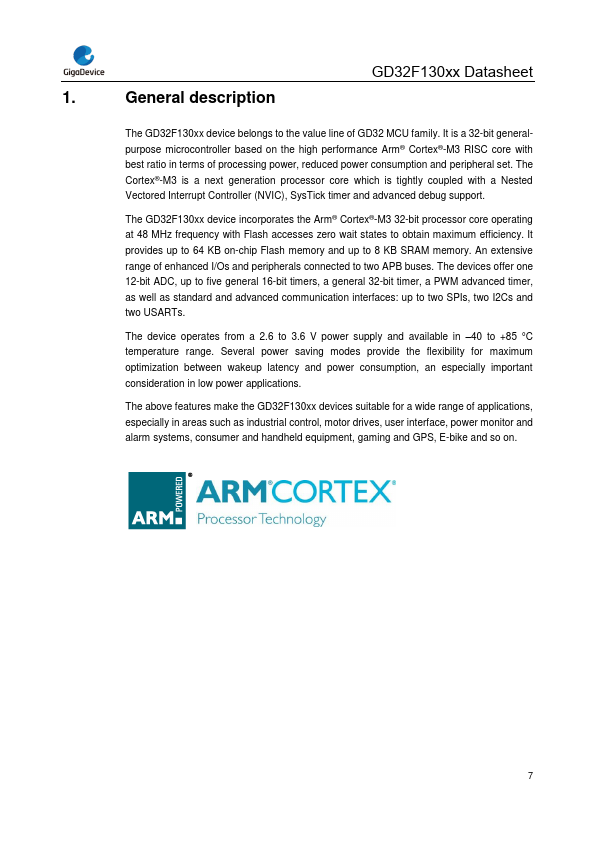

GigaDevice Semiconductor Inc. GD32F130xx Arm® Cortex®-M3 32-bit MCU Datasheet Revision 3.9 (Dec. 2023) 1. General description GD32F130xx Datasheet The GD32F130xx device incorporates the Arm® Cortex®-M3 32-bit processor core operating at 48 MHz frequency with Flash accesses zero wait states to obtain maximum efficiency. It provides up to 64 KB on-chip Flash memory and up to 8 KB SRAM memory. An extensive range of enhanced I/Os and peripherals connected to two APB buses. The devices offer one 12-bit ADC, up to five general 16-bit timers, a general 32-bit timer, a PWM advanced timer, as well as standard and advanced communication interfaces: up to two SPIs, two I2Cs and two USARTs. The device operates from a 2.6 to 3.6 V power supply and available in –40 to +85 °C temperature range. Several power saving modes provide the flexibility for maximum optimization between wakeup latency and power consumption, an especially important consideration in low power applications. The above features mak...
