GD32F407RKT6 Overview
Key Specifications
Package: LFQFP
Operating Voltage: 3.3 V
Max Voltage (typical range): 3.6 V
Min Voltage (typical range): 2.6 V
Description

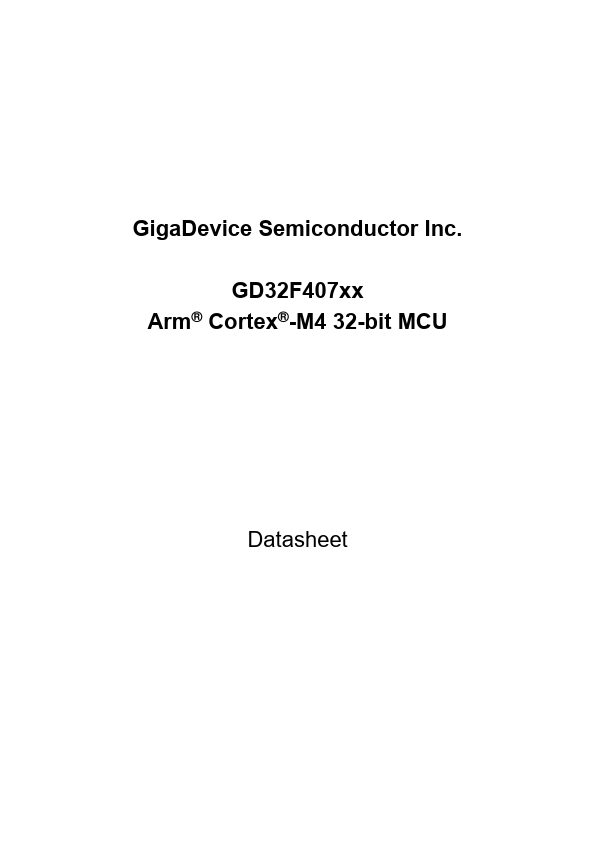

GD32F407xx Datasheet The GD32F407xx device belongs to the connectivity line of GD32 MCU family. It is a new 32bit general-purpose microcontroller based on the Arm® Cortex®-M4 RISC core with best costperformance ratio in terms of enhanced processing capacity, reduced power consumption and peripheral set.
Key Features
- It also provides a Memory Protection Unit (MPU) and powerful trace technology for enhanced application security and advanced debug support
- It provides up to 3072 KB on-chip Flash memory and 192 KB SRAM memory
- An extensive range of enhanced I/Os and peripherals connected to two APB buses
- Additional peripherals as Digital camera interface (DCI), EXMC interface with SDRAM extension support are included
- The device operates from a 2.6 to 3.6V power supply and available in –40 to +85 °C temperature range
