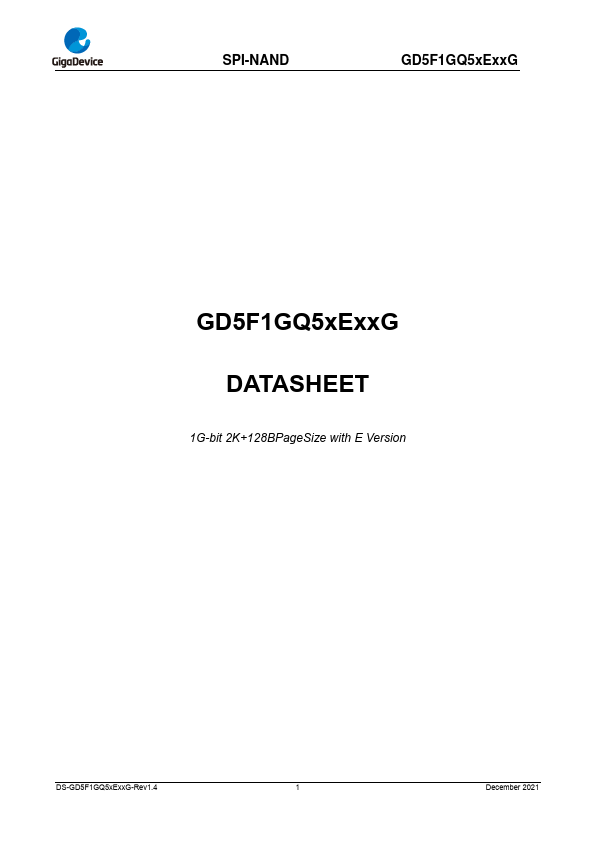

GD5F1GQ5REYIG
Description
GD5F1GQ5xExxG SPI (Serial Peripheral Interface) NAND Flash provides an ultra-cost effective while high density non-volatile memory storage solution for embedded systems, based on an industry-standard NAND Flash memory core. It is an attractive alternative to SPI-NOR and standard parallel NAND Flash, with advanced features.
Key Features
- 1Gb SLC NAND Flash
- Organization - Internal ECC On (ECC_EN=1, default): Page Size：2048-Byte+64-Byte - Internal ECC Off (ECC_EN=0): Page Size：2048-Byte+128-Byte
- Advanced security Features - 8K-Byte OTP Region
- Program/Erase/Read Speed - Page Program time: 400us typical - Block Erase time: 3ms typical - Page read time: 60us maximum
- Standard, Dual, Quad SPI,DTR - Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD# - Dual SPI: SCLK, CS#, SIO0, SIO1, WP#, HOLD# - Quad SPI: SCLK, CS#, SIO0, SIO1, SIO2, SIO3 - DTR(Double Transfer Rate) Read : SCLK, CS#, SIO0, SIO1, SIO2, SIO3
- Low Power Consumption - 30mA maximum active current - 50uA maximum standby current
- Enhanced access performance - 2Kbyte cache for fast random read
- High Speed Clock Frequency - 3.3V: 133MHz for fast read with 30pF load - 1.8V: 104MHz for fast read with 30pF load - 3.3V: Quad I/O Data transfer up to 532 Mbits/s - 1.8V: Quad I/O Data transfer up to 416 Mbits/s
- Software/Hardware Write Protection - Write protect all/portion of memory via software - Register protection with WP# Pin - Power Lock Down Protection
- Advanced Feature for NAND - Factory good block0
