GigaDevice GDQ2BFAA
DDR4 SDRAM
| Part No. | GDQ2BFAA |
|---|---|
| Datasheet | GDQ2BFAA Download |
| Manufacturer |  GigaDevice |
| Description | DDR4 SDRAM |
| Buy | Stock & Price |

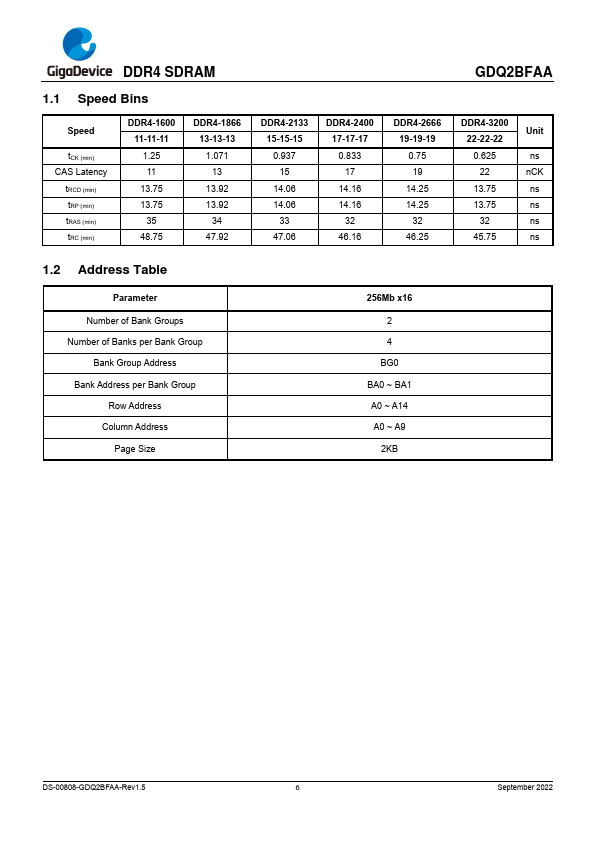

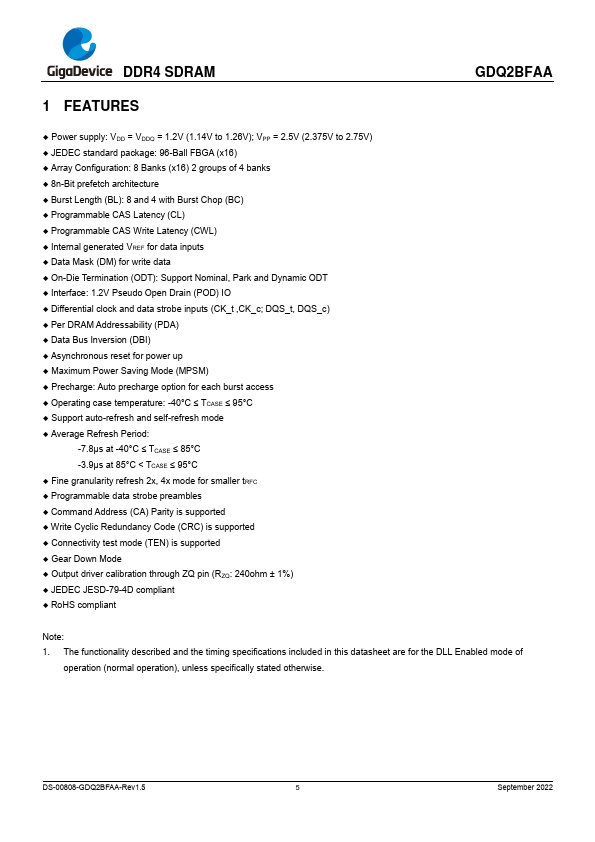

FEATURES
● Power supply: VDD = VDDQ = 1.2V (1.14V to 1.26V); VPP = 2.5V (2.375V to 2.75V)● JEDEC standard package: 96-Ball FBGA (x16)
● Array Configuration: 8 Banks (x16) 2 groups of 4 banks
● 8n-Bit prefetch architecture
● Burst Length (BL): 8 and 4 with Burst Chop (BC)
● Programmable CAS Latency (CL)
● Programmable CAS Write Latency (CWL)
● Internal generated VREF for data inputs
● Data Mask (DM) for write data
● On-Die Termination (ODT): Support Nominal, Park and Dynamic ODT
● Interface: 1.2V Pseudo Open Drain (POD) IO
● Differential clock and data strobe inputs (CK_t ,CK_c; DQS_t, DQS_c)
● Per DRAM Addressability (PDA)
● Data Bus Inversion (DBI)
● Asynchronous reset for power up
● Maximum Power Saving Mode (MPSM)
● Precharge: Auto precharge option for each burst access
● Operating case temperature: -40°C ≤ TCASE ≤ 95°C
● Support auto-refresh and self-refresh mode
● Average Refresh Period: -7.8μs at -40°C ≤ TCASE ≤ 85°C -3.9μs at 85°C < TCASE ≤ 95°C
● Fine granularity refresh 2x, 4...
