Good-Ark Semiconductor BAT43WS
Plastic-Encapsulate Schottky Barrier Diode
| Part No. | BAT43WS |
|---|---|
| Datasheet | BAT43WS Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | Plastic-Encapsulate Schottky Barrier Diode |
| Buy | Stock & Price |

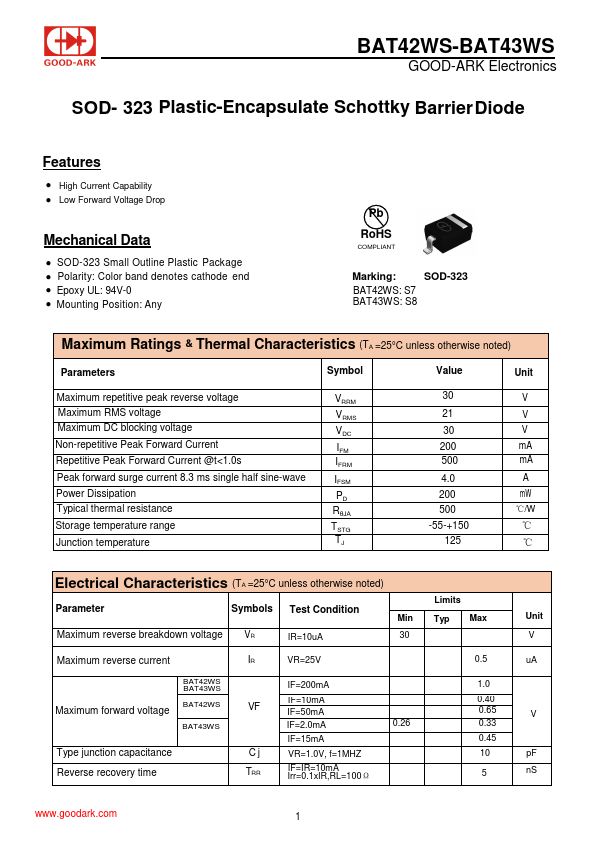

FEATURES
● High Current Capability● Low Forward Voltage Drop
MECHANICAL DATA
● SOD-323 Small Outline Plastic Package● Polarity: Color band denotes cathode end
● Epoxy UL: 94V-0
● Mounting Position: Any Pb RoHS COMPLIANT Marking: SOD-323 BAT42WS: S7 BAT43WS: S8
MAXIMUM RATINGS
& Thermal Characteristics (TA =25°C unless otherwise noted) Parameters Symbol Value Unit Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Non-repetitive Peak Forward Current Repetitive Peak Forward Current @t<1.0s Peak forward surge current 8.3 ms single half sine-wave Power Dissipation Typical thermal resistance Storage temperature range Junction temperature VRRM VRMS VDC IFM IFRM IFSM PD RθJA TSTG TJ 30 21 30 200 500 4.0 200 500 -55-+150 125 V V V mA mA A mW ℃/W ℃ ℃ELECTRICAL CHARACTERISTICS
(TA =25°C unless otherwise noted) Parameter Limits Symbols Test Condition Min Typ Max Unit Maximum reverse breakdown voltage VR IR=10uA 30 V Maximum reverse current IR VR=25V 0.5 uA...
