Good-Ark Semiconductor BC807-40
PNP Transistor
| Part No. | BC807-40 |
|---|---|
| Datasheet | BC807-40 Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | PNP Transistor |
| Buy | Stock & Price |

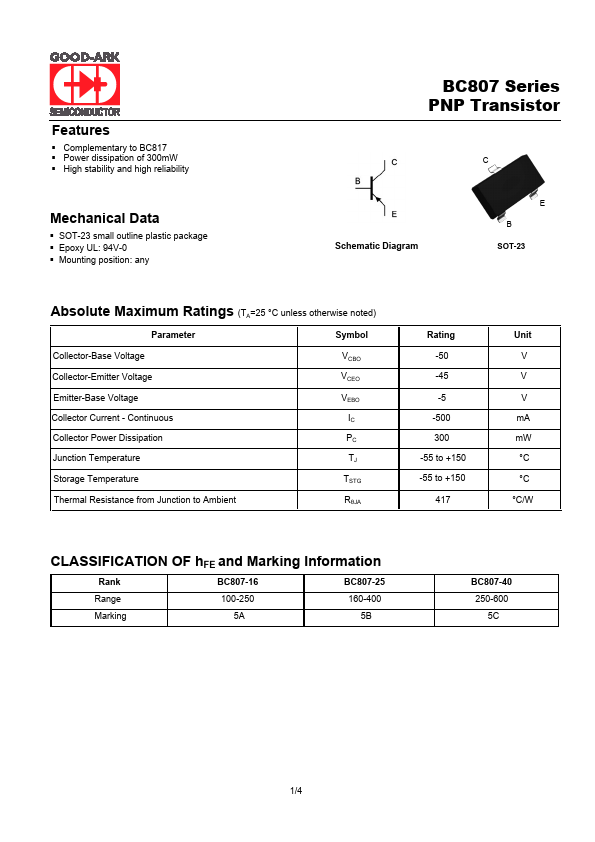

FEATURES
● Complementary to BC817● Power dissipation of 300mW
● High stability and high reliability
MECHANICAL DATA
● SOT-23 small outline plastic package● Epoxy UL: 94V-0
● Mounting position: any BC807 Series PNP Transistor Schematic Diagram C E B SOT-23
ABSOLUTE MAXIMUM RATINGS
(TA=25 °C unless otherwise noted) Parameter Symbol Collector-Base Voltage Collector-Emitter Voltage VCBO VCEO Emitter-Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature VEBO IC PC TJ Storage Temperature TSTG Thermal Resistance from Junction to Ambient RθJA Rating -50 -45 -5 -500 300 -55 to +150 -55 to +150 417 Unit V V V mA mW °C °C °C/W CLASSIFICATION OF hFE and Marking Information Rank BC807-16 BC807-25 Range 100-250 160-400 Marking 5A 5B BC807-40 250-600 5C 1/4ELECTRICAL CHARACTERISTICS

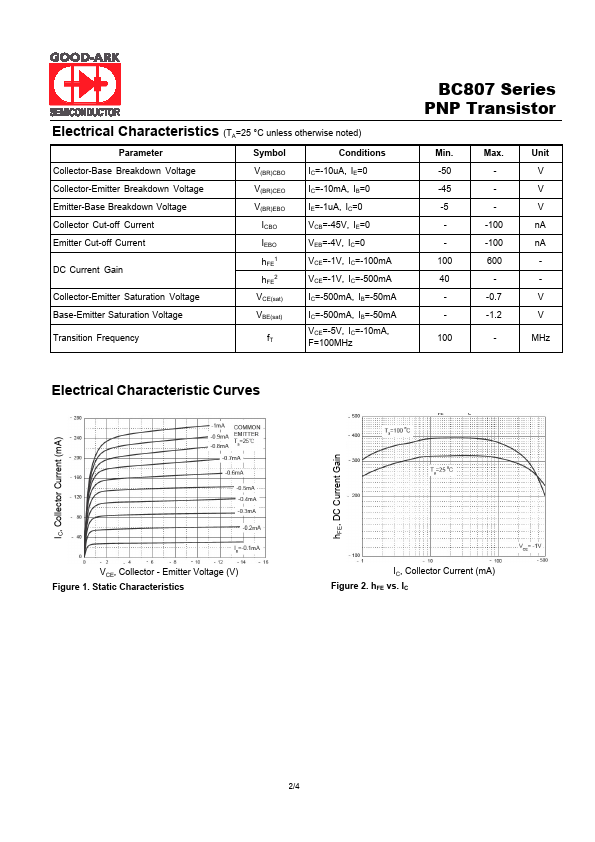

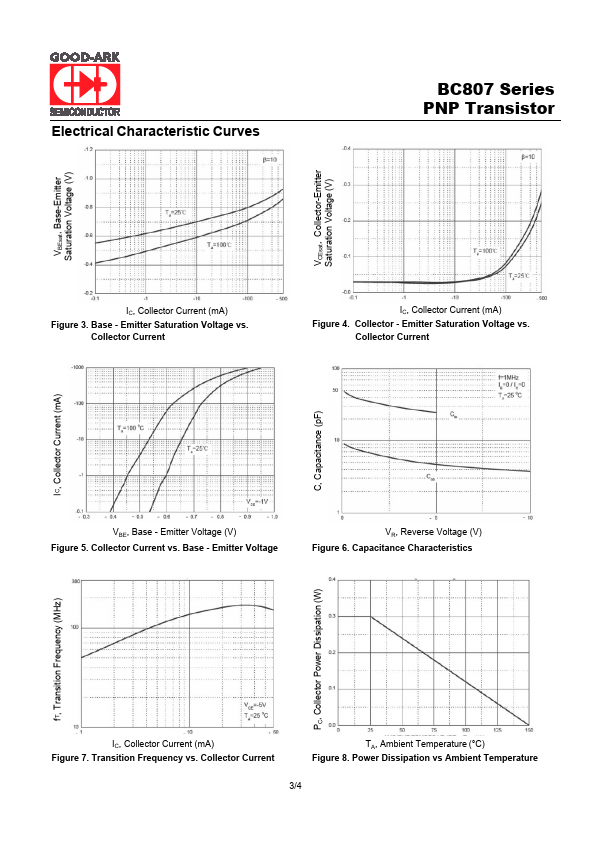

(TA=25 °C unless otherwise noted) Parameter Symbol Conditions Collector-Base Breakdown Voltage V(BR)CBO IC=-10uA, IE=0 Collector-Emitter Breakdown Voltage V(BR)CEO IC=-10mA, IB=0...
