Good-Ark Semiconductor PZT4401
NPN Transistor
| Part No. | PZT4401 |
|---|---|
| Datasheet | PZT4401 Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | NPN Transistor |
| Buy | Stock & Price |
FEATURES
● Low voltage and high current● Complementary to PZT4403
● Linear amplifier and switch applications PZT4401 NPN Transistor B C E SOT-223 Schematic Diagram
ABSOLUTE MAXIMUM RATINGS
(TA=25°C unless otherwise noted） Parameter Symbol Value Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage VCBO 60 VCEO 40 VEBO 6 Collector Current IC 600 Collector Power Dissipation PC 1 Thermal Resistance From Junction to Ambient Operation Junction and Storage Temperature Range RθJA TJ, Tstg 125 -55 to +150 Unit V V V mA W ℃/W ℃ELECTRICAL CHARACTERISTICS

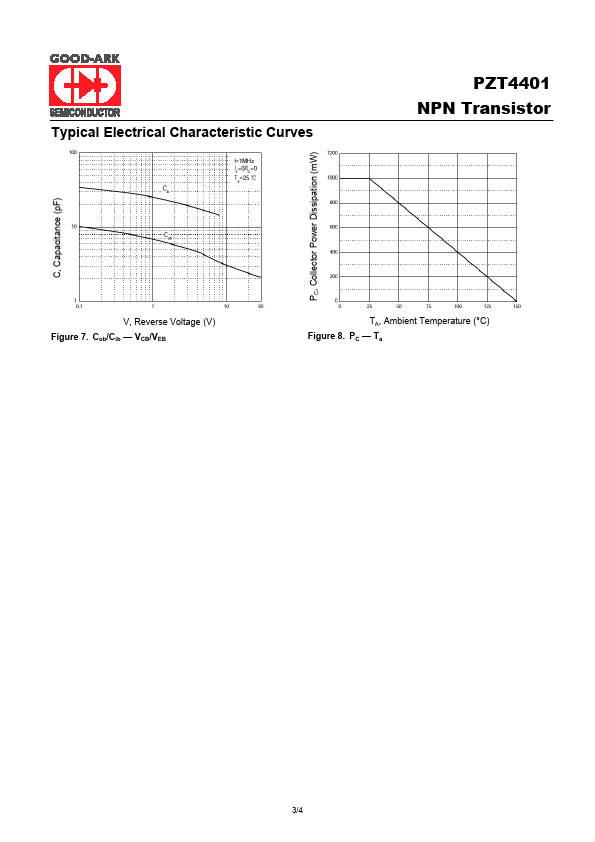

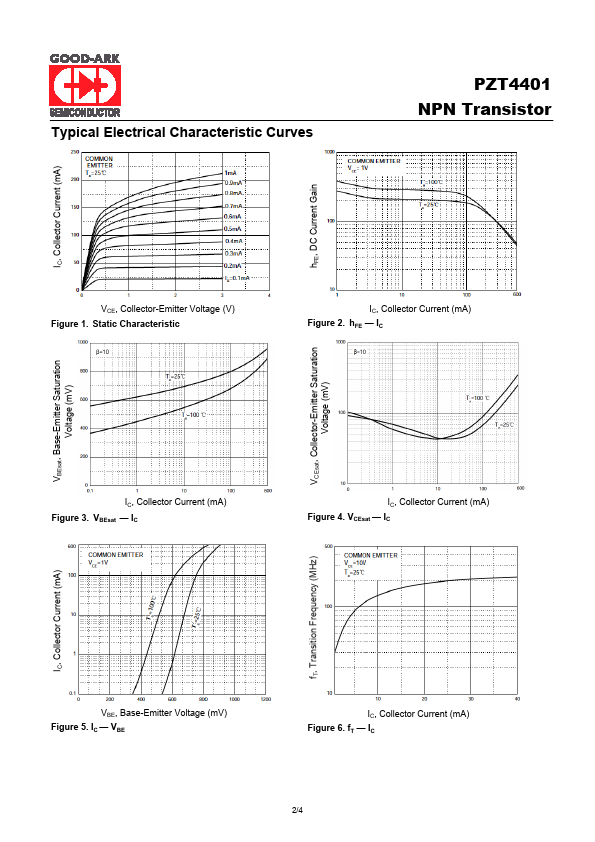

(TA=25°C unless otherwise noted） Parameter Symbol Test Conditions Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-Off Current Emitter Cut-Off Current DC Current Gain Collector-Emitter Saturation Voltage Base-Emitter Saturation Voltage Transition Frequency Collector Output Capacitance Emitter Input Capacitance V(BR)CBO IC=0.1mA, IE=0 V(BR)CEO IC=1mA, IB=0 V(BR)EBO...
