Good-Ark Semiconductor SD103AX
The information described here may contain technical inaccuracies or typographical errors. by various means, including our website home page.| Part No. | SD103AX |
|---|---|
| Datasheet | SD103AX Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | Plastic-Encapsulate Diode |
| Buy | Stock & Price |
FEATURES
● Low Forward Voltage Drop● Low Reverse Capacitance
● Low Reverse Recovery Time
● Guard Ring Construction for Transient Protection
MECHANICAL DATA

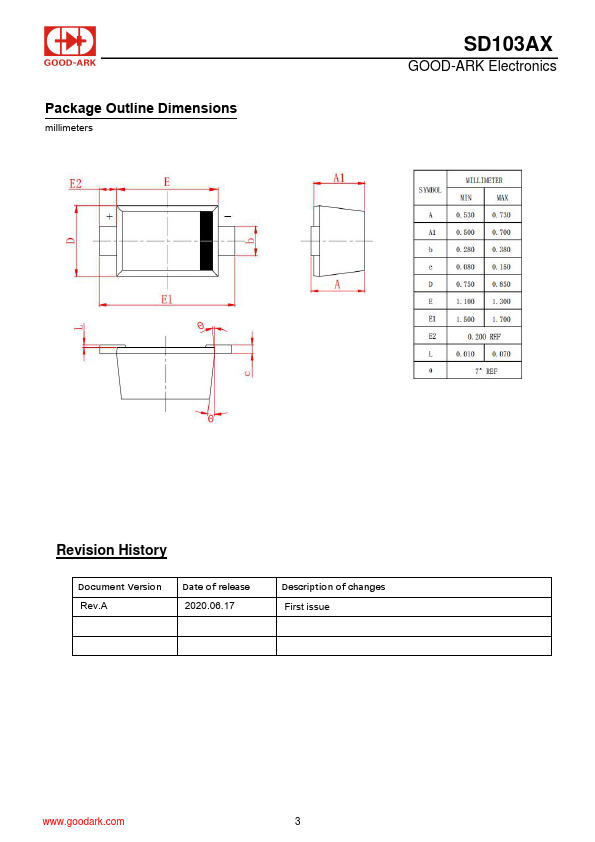

● SOD-523 Small Outline Plastic Package● Polarity: Color band denotes cathode end
● Epoxy UL: 94V-0
● Mounting Position: Any Pb RoHS COMPLIANT Marking: S4 SOD-523
MAXIMUM RATINGS

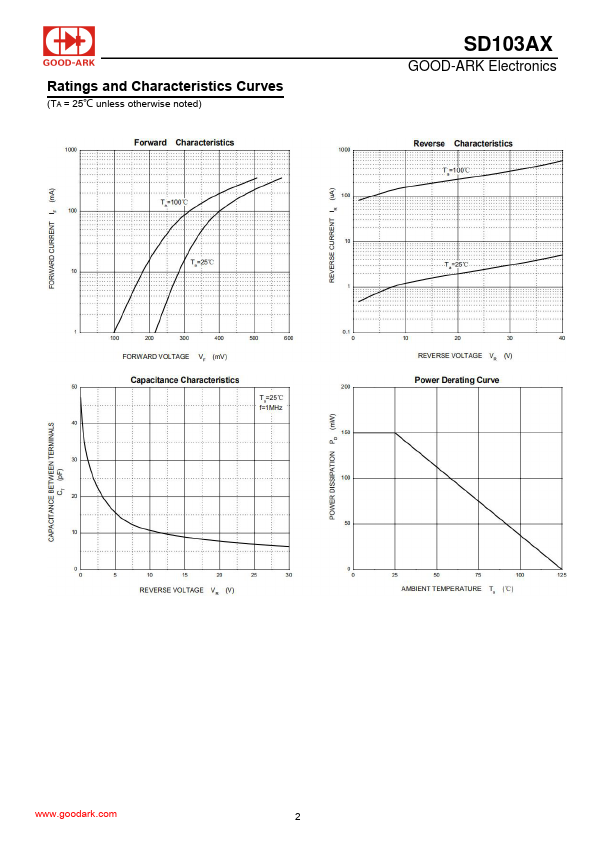

& Thermal Characteristics ( TA =25°C unless otherwise noted) Parameters Symbol Value Unit DC Blocking Voltage Working Peak Reverse Voltage Maximum repetitive peak reverse voltage Maximum RMS voltage Non-repetitive Peak Forward Current Peak forward surge current 8.3 ms single half sine-wave Power Dissipation Typical thermal resistance Storage temperature range Junction temperature VR VRWM VRRM VRMS IFM IFSM PD RθJA TSTG TJ 40 40 40 28 350 2 150 667 -55-+150 125 V V V V mA A mW ℃/W ℃ ℃ELECTRICAL CHARACTERISTICS
(TA =25°C unless otherwise noted) Parameter Reverse Breakdown Voltage Symbols VR Test Condition IR=100uA Limits Unit Min Typ Max 40 V Maximum rever...
