H2302 - 2A 20V N-Channel MOSFET

HAOHAI

Key Features

　RDS(ON)≤60mΩ @ VGS=4.5V 　RDS(ON)≤100mΩ @ VGS=2.5V 　Industry-standard pinout SOT-23 Package 　Compatible with Existing Surface MountTechniques 　RoHS Compliant,Halogen-Free 　.

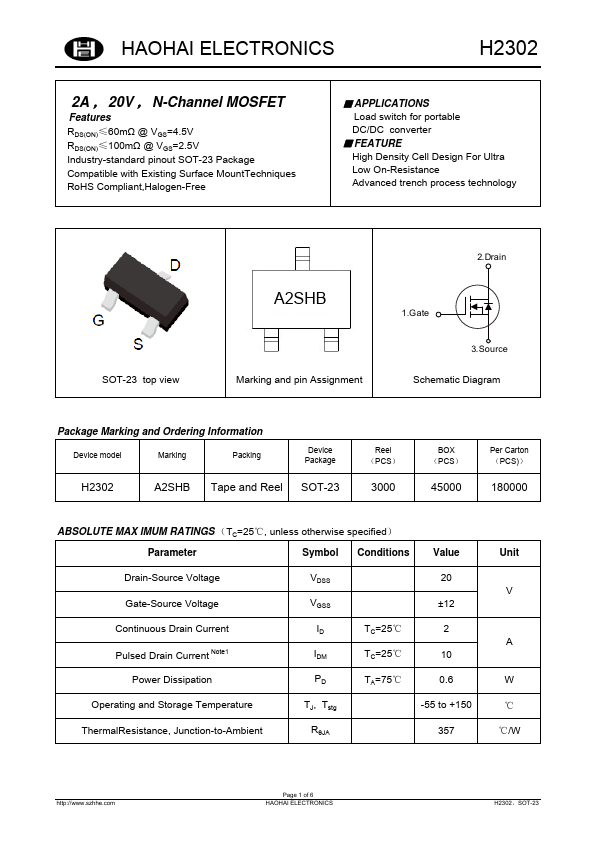

H2302 2a 20v n-channel mosfet by HAOHAI - Datasheet Preview

Datasheet Details

Part number	H2302
Manufacturer	HAOHAI
File Size	478.57 KB
Description	2A 20V N-Channel MOSFET
Datasheet	H2302 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
H2305N	P-Channel Enhancement-Mode MOSFET	HI-SINCERITY
H23A1	MATCHED EMITTED DETECTOR	ETC
H23A1	(H23A1 / H23A2) PLASTIC SIDELOOKER PAIR	Fairchild Semiconductor
H23A2	MATCHED EMITTED DETECTOR	ETC
H23A2	(H23A1 / H23A2) PLASTIC SIDELOOKER PAIR	Fairchild Semiconductor

Other Datasheets by HAOHAI

Part Number	Description
H2302A	4A 20V N-Channel MOSFET
H2301	P-Channel MOSFET

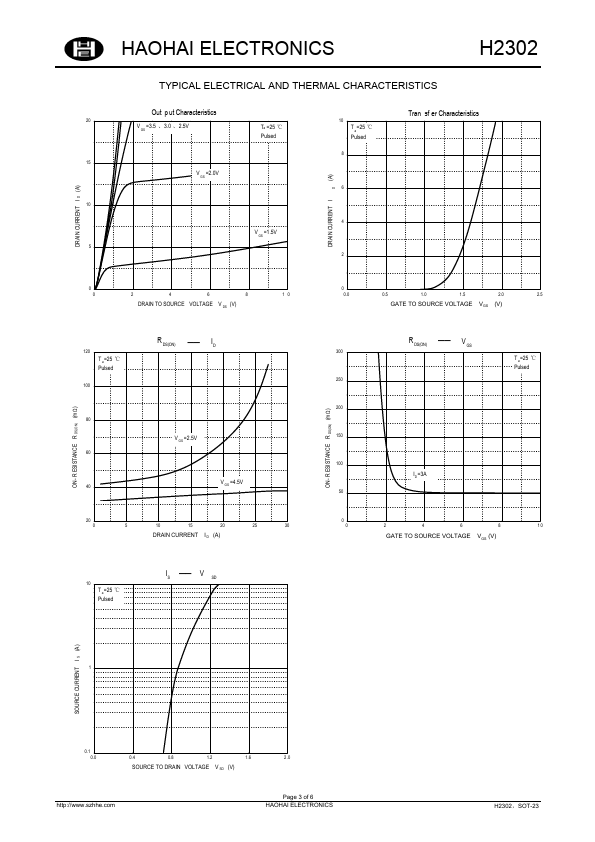

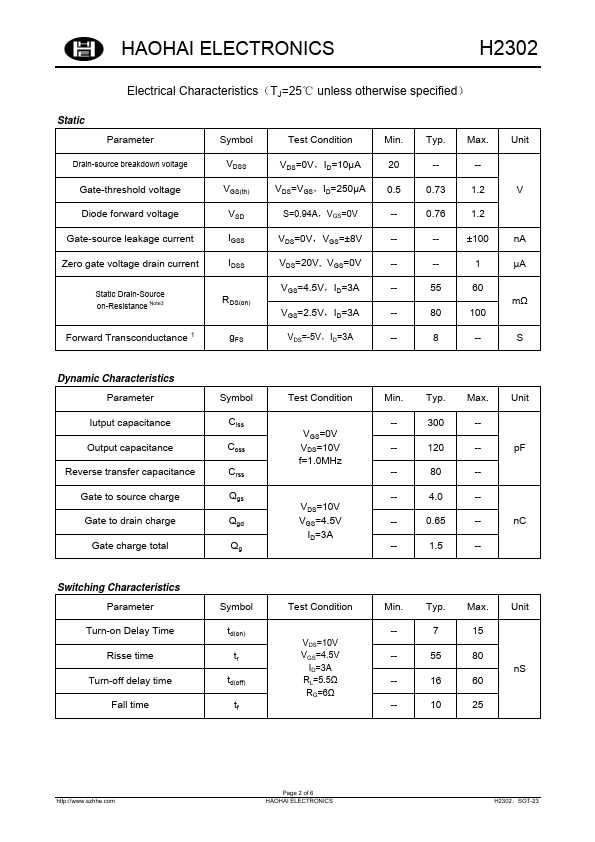

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

HAOHAI ELECTRONICS H2302 　 2A ， 20V ， N-Channel MOSFET 　 Features 　RDS(ON)≤60mΩ @ VGS=4.5V 　RDS(ON)≤100mΩ @ VGS=2.5V 　Industry-standard pinout SOT-23 Package 　Compatible with Existing Surface MountTechniques 　RoHS Compliant,Halogen-Free 　■ APPLICATIONS 　　 Load switch for portable 　　DC/DC converter 　■ FEATURE 　　High Density Cell Design For Ultra 　　Low On-Resistance 　　Advanced trench process technology SOT-23 top view A2SHB Marking and pin Assignment 2.Drain 1.Gate 3.
