PLCC4RGB-2121 Datasheet | HB Electronic Components

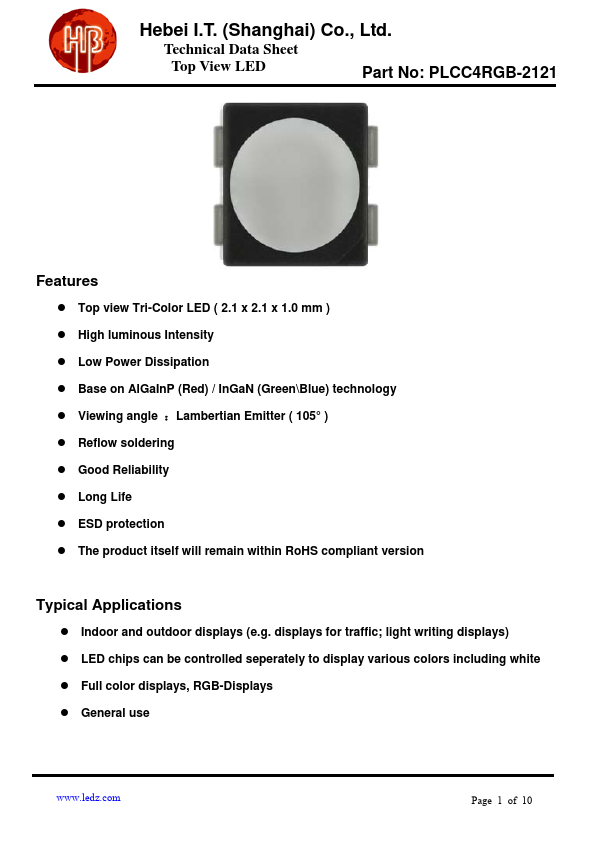

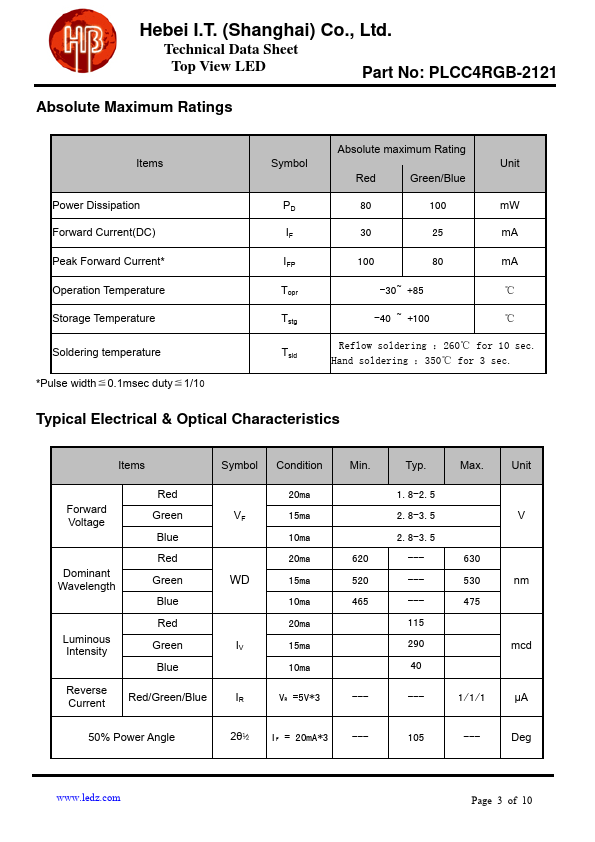

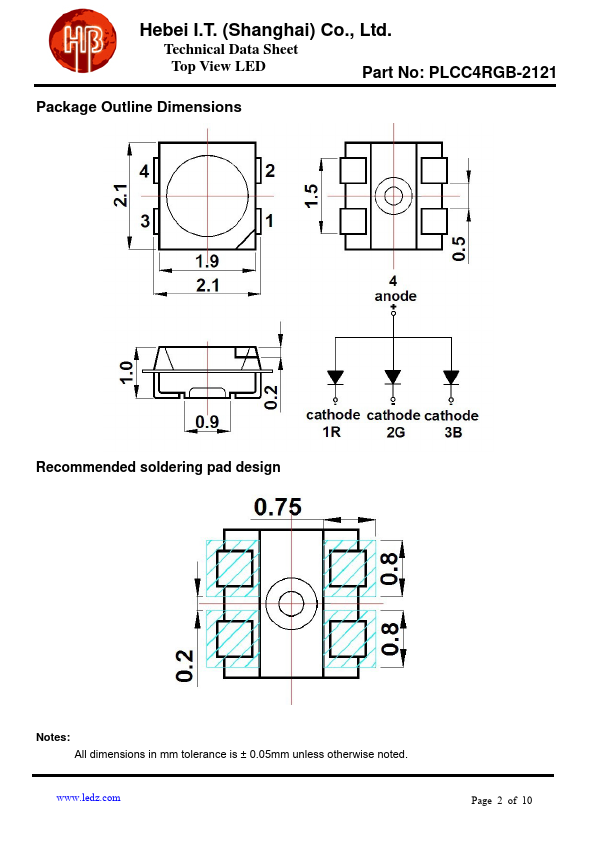

Features z Top view Tri-Color LED ( 2.1 x 2.1 x 1.0 mm ) z High luminous Intensity z Low Power Dissipation z Base on Al Ga In P (Red) / In Ga N (Green Blue) technology z Viewing angle ：Lambertian Emitter ( 105° ) z Reflow soldering z Good Reliability z Long Life z ESD protection z The product itself will remain within Ro HS pliant version Typical Applications z Indoor and outdoor displays (e.g. displays for traffic; light writing displays) z LED chips can be controlled seperately to display various colors including white z Full color displays, RGB-Displays z General use .ledz. Page 1 of 10 Hebei I.T. (Shanghai) Co., Ltd. Technical Data Sheet Top View LED Part No: PLCC4RGB-2121 Package Outline Dimensions Remended soldering pad design Notes: All dimensions in mm tolerance is ± 0.05mm unless otherwise noted. .ledz. Page 2 of 10 Hebei I.T. (Shanghai) Co., Ltd. Technical Data Sheet Top View LED Part No: PLCC4RGB-2121 Absolute Maximum Ratings Items Power Dissipation Forward Current(DC) Peak Forward Current- Operation Temperature Storage Temperature Soldering temperature - Pulse width≦0.1msec duty≦1/10 Symbol PD IF IFP Topr Tstg Tsld Absolute maximum Rating Unit Red Green/Blue 100 m W 25 m A 80 m A -30~ +85 ℃ -40 ~ +100 ℃ Reflow soldering ：260℃ for 10 sec. Hand soldering ：350℃ for 3 sec. Typical Electrical & Optical Characteristics Items...
