HC32L110 - 32-bit microcontroller

Key Features

  • ◾ 32MHz Cortex-M0+ 32-bit CPU platform ◾ HC32L110 series has a flexible power management system, ultra-low power performance ‒ 0.5μA @ 3V Deep-sleep mode: all clocks off, power-on reset active, IO state retention, IO interrupt active, all registers, RAM and CPU data save state power consumption ‒ 1.0μA @3V deep sleep mode + RTC working ‒ 6μA @32.768kHz low-speed working mode: CPU and peripheral modules run, run programs from flash ‒ 20μA/MHz@3V@16MHz sleep mode: CPU stops working.

📥 Download Datasheet

Datasheet Details

Part number HC32L110
Manufacturer HDSC
File Size 885.46 KB
Description 32-bit microcontroller
Datasheet download datasheet HC32L110 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HC32L130 32-bit microcontroller XHSC
HC32L136 32-bit microcontroller XHSC
HC320 Controller ETC
HC32A448 32-bit Microcontroller XHSC
HC32A4A0 32-bit Microcontroller XHSC

Other Datasheets by HDSC

Part Number Description
HC32L190 32-bit microcontroller
HC32L196 32-bit microcontroller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

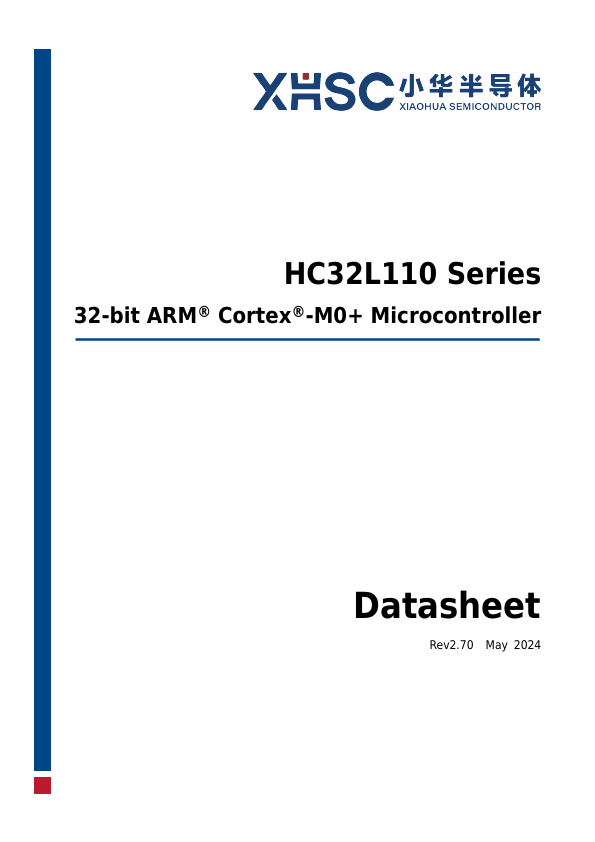

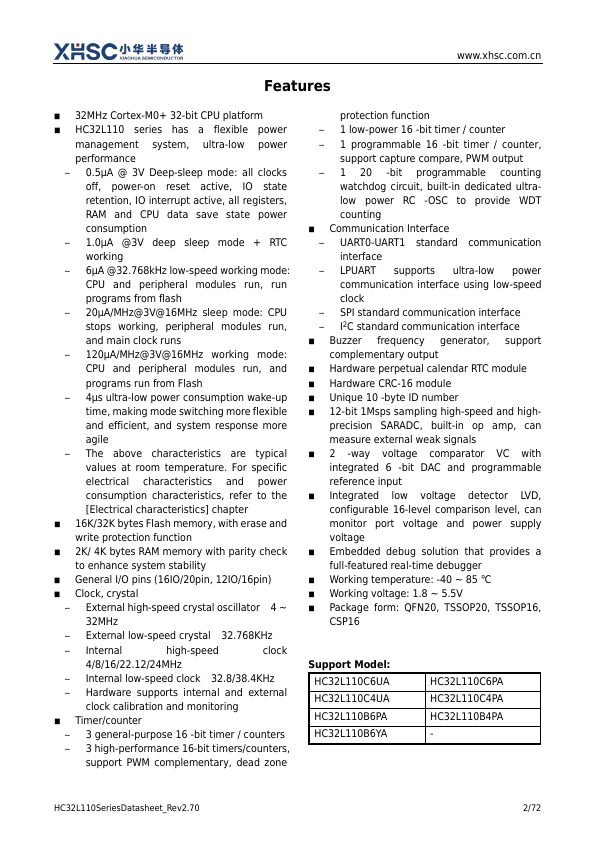

HC32L110 Series 32-bit ARM® Cortex®-M0+ Microcontroller Datasheet Rev2.70 May 2024 www.xhsc.com.cn Features ◾ 32MHz Cortex-M0+ 32-bit CPU platform ◾ HC32L110 series has a flexible power management system, ultra-low power performance ‒ 0.5μA @ 3V Deep-sleep mode: all clocks off, power-on reset active, IO state retention, IO interrupt active, all registers, RAM and CPU data save state power consumption ‒ 1.0μA @3V deep sleep mode + RTC working ‒ 6μA @32.
