HOTCHIP AMS1117
The AMS1117 is a series of low dropout voltage Low Dropout Voltage regulators which can provide up to 1A of output Load regulation:0.5% Max current. The AMS1117 is available in six fixed Optimized for Low Voltage voltage, 1.2, 1.8, 2.5, 3.3 and 5.0V. IP The AMS1117 series is available in SOT-223, TO-252, SOT89 packages.| Part No. | AMS1117 |
|---|---|
| Datasheet | AMS1117 Download |
| Manufacturer |  HOTCHIP |
| Description | 1A Adiustable / Fixed Low Dropout Linear Requlator |
| Buy | Stock & Price |
DESCRIPTION
FEATURES
The AMS1117 is a series of low dropout voltage● Low Dropout Voltage regulators which can provide up to 1A of output
● Load regulation:0.5% Max current. The AMS1117 is available in six fixed
● Optimized for Low Voltage voltage, 1.2, 1.8, 2.5, 3.3 and 5.0V. Additionally it is
● On-chip thermal limiting. also available in adjustable version. On chip
● Maximum Input Voltage : 30V precision trimming adjusts the reference/ output
● Adjustable Output Voltage or Fixed 1.2V, 1.8V, voltage to within ± 2%. On-chip thermal limiting provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. A minimum of 10uF tantalum capacitor is required at the output to H improve the transient response and stability. 2.5V, 3.3V, 5V

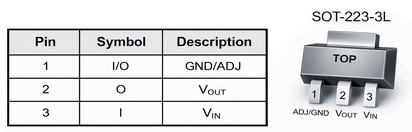

● Standard SOT-223,TO-252 ,SOT89 Packages
APPLICATIONS
● Post Regulator for switching DC/DC Converter● High Efficiency Linear Regulator
● Battery Chargers
● PC Add on Card
● Motherboard cloc...
