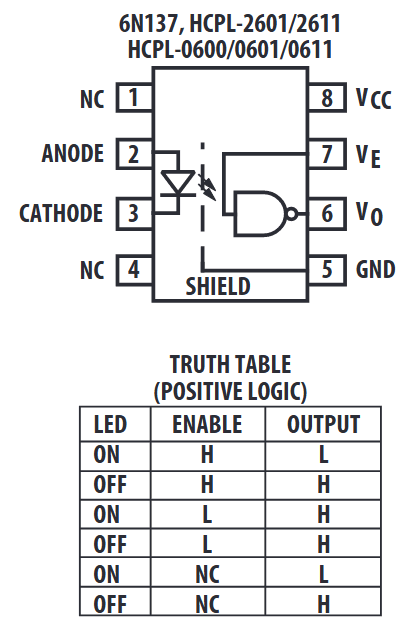

HCPL-0601 - High Speed TTL Compatible Optocouplers

Product Overview

Part number	HCPL-0601
Manufacturer	HP
File Size	244.54 KB
Description	High Speed TTL Compatible Optocouplers
Datasheet	HCPL-0601 Datasheet
Note	This datasheet PDF includes multiple part numbers: HCPL-0601, HCPL-0600. Please refer to the document for exact specifications by model.
Additional preview pages of the HCPL-0601 datasheet.

5 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 50 V for HCPL-X601/ X631, HCNW2601 and 10 kV/µs Minimum CMR at VCM = 1000 V for HCPLX611/X661, HCNW2611.
High Speed: 10 MBd Typical.
LSTTL/TTL Compatible.
Low Input Current Capability: 5 mA.
Guaranteed ac and dc Performance over Temperature: -40°C to +85°C.
Available in 8-Pin DIP, SOIC-8, Widebody Packages.
Strobable Output (Single Channel Products Only).
Safety Approval.
