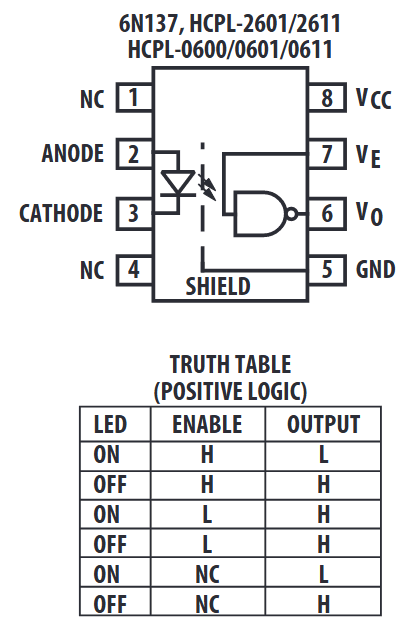

HCPL-2601 Overview
H High CMR, High Speed TTL patible Optocouplers Technical Data 6N137 HCNW137 HCNW2601 HCNW2611 HCPL-0600 HCPL-0601 HCPL-0611 HCPL-0630 HCPL-0631 HCPL-0661 HCPL-2601 HCPL-2611 HCPL-2630 HCPL-2631.
HCPL-2601 Key Features
- High Speed: 10 MBd Typical
- LSTTL/TTL patible
- Low Input Current Capability: 5 mA
- Guaranteed ac and dc Performance over Temperature: -40°C to +85°C
- Available in 8-Pin DIP, SOIC-8, Widebody Packages
- Strobable Output (Single Channel Products Only)
- Safety Approval UL Recognized
- MIL-STD-1772 Version Available (HCPL-56XX/ 66XX)
