HCPL-2630
Key Features
- 5 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 50 V for HCPL-X601/ X631, HCNW2601 and 10 kV/µs Minimum CMR at VCM = 1000 V for HCPLX611/X661, HCNW2611
- High Speed: 10 MBd Typical
- LSTTL/TTL Compatible
- Low Input Current Capability: 5 mA
- Guaranteed ac and dc Performance over Temperature: -40°C to +85°C
- Available in 8-Pin DIP, SOIC-8, Widebody Packages
- Strobable Output (Single Channel Products Only)
- Safety Approval UL Recognized - 2500 V rms for 1 minute and 5000 V rms* for 1 minute per UL1577 CSA Approved VDE 0884 Approved with VIORM = 630 V peak for HCPL-2611 Option 060 and VIORM = 1414 V peak for HCNW137/26X1 BSI Certified (HCNW137/26X1 Only)
- MIL-STD-1772 Version Available (HCPL-56XX/ 66XX)

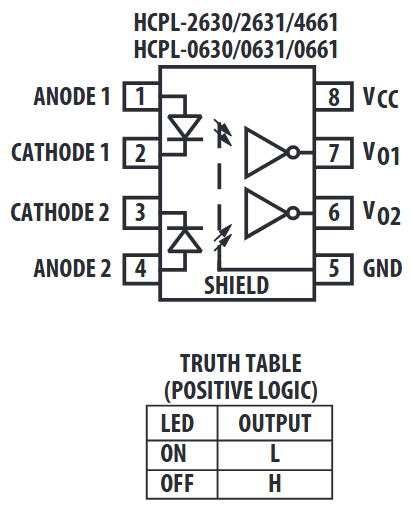

Representative HCPL-2630 image (package may vary by manufacturer)
