HCPL-3150 Datasheet 0.5 Amp Output Current IGBT Gate Drive Optocoupler

Manufacturer: HP

Overview: H 0.5 Amp Output Current IGBT Gate Drive Optocoupler Technical Data.

Datasheet Details

Part number	HCPL-3150
Manufacturer	HP
File Size	238.16 KB
Description	0.5 Amp Output Current IGBT Gate Drive Optocoupler
Datasheet	HCPL-3150-HP.pdf

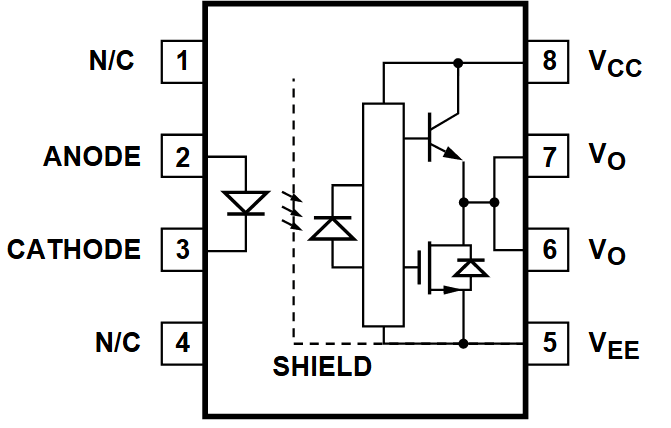

The HCPL-3150 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage.

This optocoupler is ideally suited for driving power IGBTs an

0.5 A Minimum Peak Output Current.
15 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 1500 V.
1.0 V Maximum Low Level Output Voltage (VOL) Eliminates Need for Negative Gate Drive.
ICC = 5 mA Maximum Supply Current.
Under Voltage Lock-Out Protection (UVLO) with Hysteresis.
Wide Operating VCC Range: 15 to 30 Volts.
500 ns Maximum Switching Speeds.
Industrial Temperature Range: -40°C to 100°C.
Safety and Regulatory.
