IAM-82008 - Active Double Balanced Mixer/IF Amp

General Description

Hewlett-Packard's IAM-82008 is a complete moderate-power doublebalanced active mixer housed in a miniature low cost surface mount package.

It is designed for narrow or wide bandwidth commercial and industrial applications having RF inputs up to 5 GHz.

Key Features

  • RF-IF Conversion Gain: 15 dB from 0.05-5 GHz.
  • IF Conversion Gain from DC to 2 GHz.
  • IF Output P1dB: +8␣ dBm␣ Typical.
  • Single Polarity Bias Supply: VCC = 7 to 13 V.
  • Load Insensitive Performance.
  • Conversion Gain Flat over Temperature.

📥 Download Datasheet

Datasheet Details

Part number IAM-82008
Manufacturer HP
File Size 55.82 KB
Description Active Double Balanced Mixer/IF Amp
Datasheet download datasheet IAM-82008 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IAM-20381 High Performance 3-Axis MotionTracking Accelerometer TDK
IAM-20381HT High Performance Automotive Grade-2 3-Axis Accelerometer TDK
IAM-20680 High Performance Automotive 6-Axis MotionTracking TDK
IAM-20680HP High Performance Automotive 6-Axis MotionTracking TDK
IAM-20680HT High Performance Automotive 6-Axis MotionTracking TDK

Other Datasheets by HP

Part Number Description
IAM-82028 Active Double Balanced Mixer/IF Amp
IAM-81008 Active Double Balanced Mixer/IF Amp
IAM-81028 Active Double Balanced Mixer/IF Amp

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

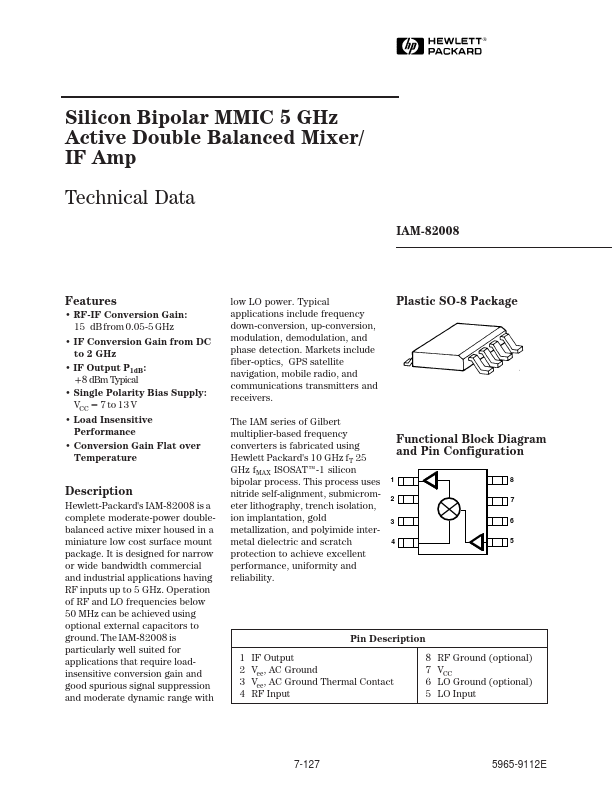

Silicon Bipolar MMIC 5 GHz Active Double Balanced Mixer/ IF Amp Technical Data IAM-82008 Features • RF-IF Conversion Gain: 15 dB from 0.05-5 GHz • IF Conversion Gain from DC to 2 GHz • IF Output P1dB: +8␣ dBm␣ Typical • Single Polarity Bias Supply: VCC = 7 to 13 V • Load Insensitive Performance • Conversion Gain Flat over Temperature Description Hewlett-Packard's IAM-82008 is a complete moderate-power doublebalanced active mixer housed in a miniature low cost surface mount package. It is designed for narrow or wide bandwidth commercial and industrial applications having RF inputs up to 5 GHz. Operation of RF and LO frequencies below 50 MHz can be achieved using optional external capacitors to ground.
