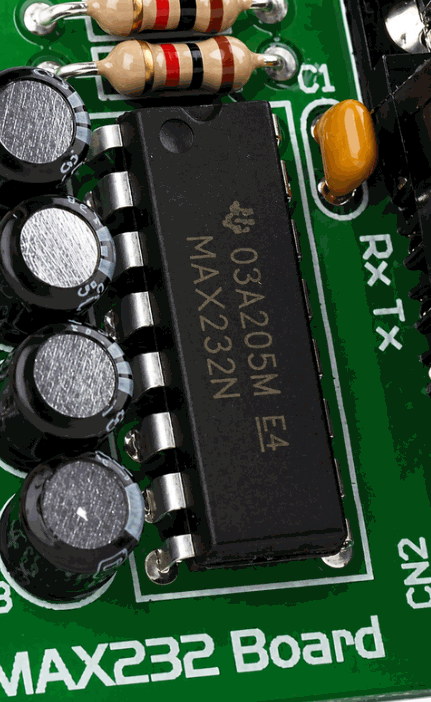

MAX232 - 5V Dual channel RS-232 Drivers/Receivers

General Description

The MAX232 is a dual driver/receiver of RS-232 standard with a single supply voltage and bipolar output voltage of the transmitter formed by a built-In voltage multiplying generator on four 1.0µF external capacitors, designed for use in state-of-the-art high performance computing systems, high-spee

Key Features

  • Output voltage levels are compatible with input levels of CMOS and TTL integrated circuits.
  • Meets All EIA/TIA-232E and V.28/V.24 Specifications.
  • Supply voltage range from 4.5 to 5.5V.
  • Low input current: 1.0µA at 25°C.
  • Output current 24mA.
  • Tolerable value of static potential not less than 2kV.
  • Available in DIP-16 Package MAX232 DIP-16.

📥 Download Datasheet

Datasheet Details

Part number MAX232
Manufacturer HTC KOREA
File Size 196.62 KB
Description 5V Dual channel RS-232 Drivers/Receivers
Datasheet download datasheet MAX232 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAX232 Dual EIA-232 Drivers/Receivers Texas Instruments
MAX232 Multichannel RS-232 Drivers/Receivers Maxim
MAX232 Multi-Channel RS-232 Drivers/Receivers UMW
MAX2320 SiGe Dual-Band LNA/Mixer Maxim
MAX2321 SiGe Dual-Band LNA/Mixer Maxim

Other Datasheets by HTC KOREA

Part Number Description
MAX232EN 5V Dual channel RS-232 Drivers/Receivers
MAX3485 10Mbps Half-Duplex RS-485/RS-422 Transceiver
MAX485 Slew-Rate-Limited RS-485/RS-422 Transceivers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
5V Dual channel RS-232 Drivers/Receivers FEATURES  Output voltage levels are compatible with input levels of CMOS and TTL integrated circuits  Meets All EIA/TIA-232E and V.28/V.24 Specifications  Supply voltage range from 4.5 to 5.5V  Low input current: 1.0µA at 25°C  Output current 24mA  Tolerable value of static potential not less than 2kV  Available in DIP-16 Package MAX232 DIP-16 APPLICATIONS  Portable Computers  Battery-Powered RS-232 Systems  Interface Translation  Low-Power Modems  Terminals ORDERING INFORMATION Device MAX232EN Package DIP-16 * Refer to the ordering information for the details.
