07D121KEC Overview
Description

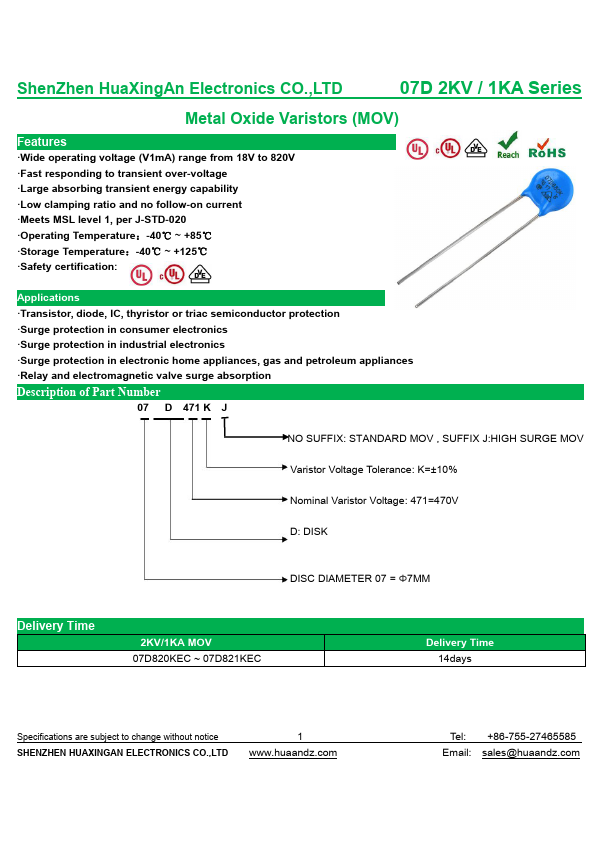

of Part Number 07 D 471 K J NO SUFFIX: STANDARD MOV , SUFFIX J:HIGH SURGE MOV Varistor Voltage Tolerance: K=±10% Nominal Varistor Voltage: 471=470V D: DISK DISC DIAMETER 07 = Φ7MM Delivery Time 2KV/1KA MOV 07D820KEC ~ 07D821KEC Delivery Time 14days Specifications are subject to change without notice SHENZHEN HUAXINGAN ELECTRONICS CO.,LTD 1 Tel: +86-755-27465585 Email: sales@ ShenZhen HuaXingAn Electronics CO.,LTD 07D 2KV / 1KA Series Part Number Maximum Allowable Voltage 2KV/1KA MOV VAC(V) VDC(V) Varistor Voltage V1mA(V) Withstanding SurgeMaximu Typical Maximum Current Clamping Voltage 1.2/50us & 8/20us combination of wave,2KV/1KA Sub VC(V) 0,90,180,270 four m Capacitanc Safety Energy e Certification (10/1000 (Reference μs) ) (J) 1KHz(pf) UL / CULVDE phases,Total 07D820KEC 50 65 82(73.8~90.2) 135 40 times 12 600 √ √ 07D101KEC 60 85 100(90~110) 165 40 times 14 500 √ √ 07D121KEC 75 100 120(108~132) 200 40 times 14 420 √ √ 07D151KEC 95 125 150(135~165) 250 40 times 16 330 √ √ 07D181KEC 115 150 180(162~198) 300 40 times 19 280 √ √ 07D201KEC 130 170 200(180~220) 340 40 times 20 25.
Key Features
- Wide operating voltage (V1mA) range from 18V to 820V
- Fast responding to transient over-voltage
- Large absorbing transient energy capability
- Low clamping ratio and no follow-on current
- Meets MSL level 1, per J-STD-020
- Operating Temperature：-40℃ ~ +85℃
- Storage Temperature：-40℃ ~ +125℃
- Safety certification
