14D301KHC Overview
Description

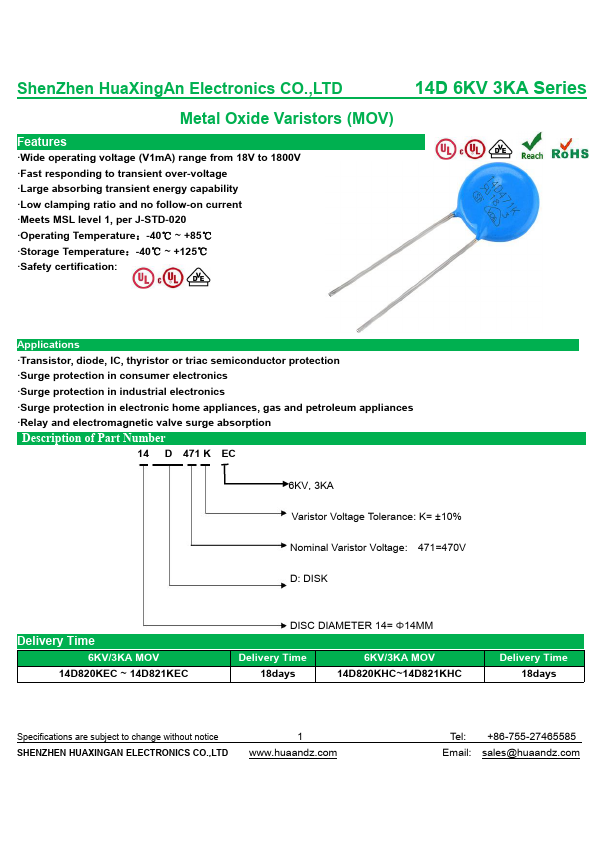

of Part Number 14 D 471 K EC 6KV, 3KA Varistor Voltage Tolerance: K= ±10% Nominal Varistor Voltage: 471=470V D: DISK Delivery Time 6KV/3KA MOV 14D820KEC ~ 14D821KEC DISC DIAMETER 14= Φ14MM Delivery Time 18days 6KV/3KA MOV 14D820KHC~14D821KHC Delivery Time 18days Specifications are subject to change without notice SHENZHEN HUAXINGAN ELECTRONICS CO.,LTD 1 Tel: +86-755-27465585 Email: sales@ ShenZhen HuaXingAn Electronics CO.,LTD 14D 6KV 3KA Series Part Number Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage VC(V) 6KV/3KA MOV VAC(V) VDC(V) V1mA(V) AT 25A 14D820KEC 14D101KEC 14D121KEC 14D151KEC 14D181KEC 14D201KEC 14D221KEC 14D241KEC 14D271KEC 14D301KEC 14D331KEC 14D361KEC 14D391KEC 14D431KEC 14D471KEC 14D511KEC 14D561KEC 14D621KEC 14D681KEC 14D751KEC 14D781KEC 14D821KEC 50 65 82(73.8 ~90.2) 135 60 85 100(90~110) 165 75 100 120(108~132) 200 95 125 150(135~165) 250 115 150 180(162~198) 300 130 170 200(180~220) 340 140 180 220(198~242) 360 150 200 240(216~264) 395 175 225 270(243~297) 455 190 250 300(270~330) 500 210 275 330(297~363) 550 230 300 360(324~396) 595 250 320 390(351~429) 650.
Key Features
- Wide operating voltage (V1mA) range from 18V to 1800V
- Fast responding to transient over-voltage
- Large absorbing transient energy capability
- Low clamping ratio and no follow-on current
- Meets MSL level 1, per J-STD-020
- Operating Temperature：-40℃ ~ +85℃
- Storage Temperature：-40℃ ~ +125℃
