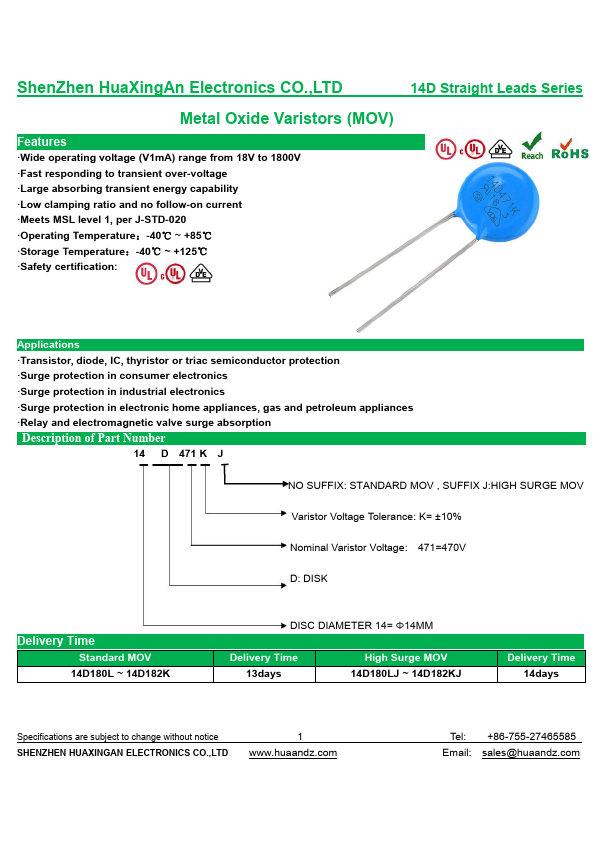

HuaXingAn Electronics 14D680K
Metal Oxide Varistors
| Part No. | 14D680K |
|---|---|
| Datasheet | 14D680K Download |
| Manufacturer | HuaXingAn Electronics |
| Description | Metal Oxide Varistors |
| Buy | Stock & Price |
FEATURES
●Wide operating voltage (V1mA) range from 18V to 1800V●Fast responding to transient over-voltage
●Large absorbing transient energy capability
●Low clamping ratio and no follow-on current
●Meets MSL level 1, per J-STD-020
●Operating Temperature：-40℃ ~ +85℃
●Storage Temperature：-40℃ ~ +125℃
●Safety certification: 1
APPLICATIONS
●Transistor, diode, IC, thyristor or triac semiconductor protection●Surge protection in consumer electronics
●Surge protection in industrial electronics
●Surge protection in electronic home appliances, gas and petroleum appliances
●Relay and electromagnetic valve surge absorption
DESCRIPTION
of Part Number 14 D 471 K J NO SUFFIX: STANDARD MOV , SUFFIX J:HIGH SURGE MOV Varistor Voltage Tolerance: K= ±10% Nominal Varistor Voltage: 471=470V D: DISK Delivery Time Standard MOV 14D180L ~ 14D182K DISC DIAMETER 14= Φ14MM Delivery Time 13days High Surge MOV 14D180LJ ~ 14D182KJ Delivery Time 14days Specifications are subject to change without notice SHENZHEN HUAX...
