20D221KEC Overview
Description

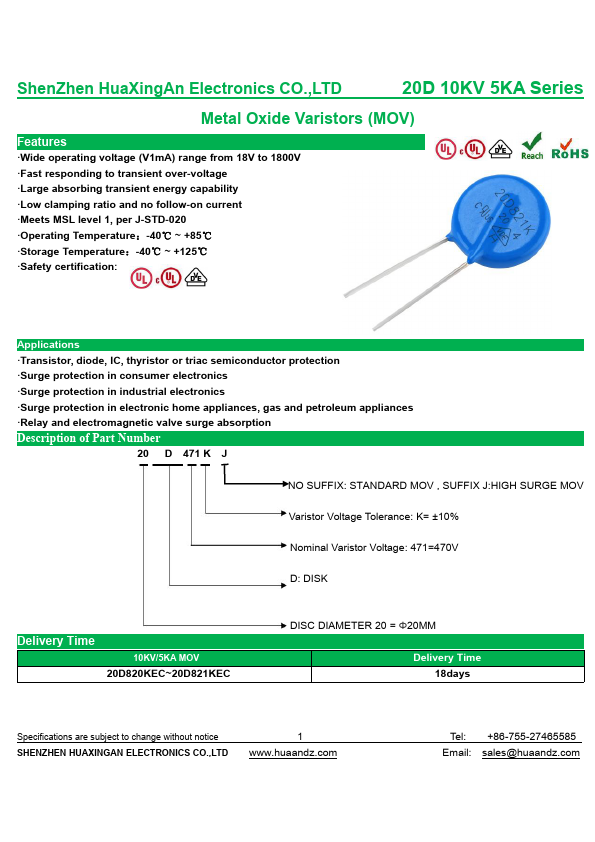

of Part Number 20 D 471 K J NO SUFFIX: STANDARD MOV , SUFFIX J:HIGH SURGE MOV Varistor Voltage Tolerance: K= ±10% Nominal Varistor Voltage: 471=470V D: DISK Delivery Time 10KV/5KA MOV 20D820KEC~20D821KEC DISC DIAMETER 20 = Φ20MM Delivery Time 18days Specifications are subject to change without notice SHENZHEN HUAXINGAN ELECTRONICS CO.,LTD 1 Tel: +86-755-27465585 Email: sales@ ShenZhen HuaXingAn Electronics CO.,LTD 20D 10KV 5KA Series Maximum Part Number Allowable Voltage 10KV/5KA MOV VAC(V) VDC(V) 20D820KEC 50 65 20D101KEC 60 85 20D121KEC 75 100 20D151KEC 95 125 20D181KEC 115 150 20D201KEC 130 170 20D221KEC 140 180 20D241KEC 150 200 20D271KEC 175 225 20D301KEC 190 250 20D331KEC 210 275 20D361KEC 230 300 20D391KEC 250 320 20D431KEC 275 350 20D471KEC 300 385 20D511KEC 320 415 20D561KEC 350 460 20D621KEC 385 505 20D681KEC 420 560 20D751KEC 460 615 20D781KEC 485 640 20D821KEC 510 670 Varistor Voltage Maximum Clamping Voltage Maximum Typical Safety Withstandin Surge Energy Capacitance Certificatio Current (10/1000μs) (Reference) n 1.2/50us & 8/20us V1mA(V) VC(V)AT100 A combination of wave,10KV/5KA (J) Sub 0,90,1.
Key Features
- Wide operating voltage (V1mA) range from 18V to 1800V
- Fast responding to transient over-voltage
- Large absorbing transient energy capability
- Low clamping ratio and no follow-on current
- Meets MSL level 1, per J-STD-020
- Operating Temperature：-40℃ ~ +85℃
- Storage Temperature：-40℃ ~ +125℃1
- Safety certification
