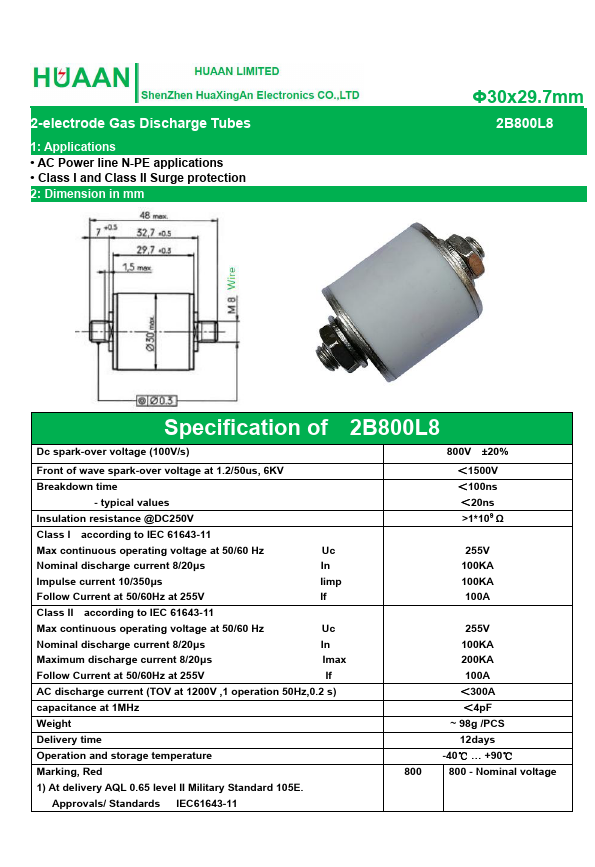

2B800L8 Datasheet | HuaXingAn Electronics

2-electrode Gas Discharge Tubes 1: Applications - AC Power line N-PE applications - Class I and Class II Surge protection 2: Dimension in mm Φ30x29.7mm Specification of 2B800L8 Dc spark-over voltage (100V/s) 800V ±20% Front of wave spark-over voltage at 1.2/50us, 6KV Breakdown time - typical values Insulation resistance @DC250V Class I according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Uc Nominal discharge current 8/20μs In Impulse current 10/350μs Iimp Follow Current at 50/60Hz at 255V If Class II according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Uc Nominal discharge current 8/20μs In Maximum discharge current 8/20μs Imax Follow Current at 50/60Hz at 255V If AC discharge current (TOV at 1200V ,1 operation 50Hz,0.2 s) capacitance at 1MHz Weight Delivery time Operation and storage temperature Marking, Red 1) At delivery AQL 0.65 level II Military Standard 105E. Approvals/ Standards IEC61643-11 ＜1500V ＜100ns ＜20ns >1- 109 Ω 255V 100KA 100KA...
