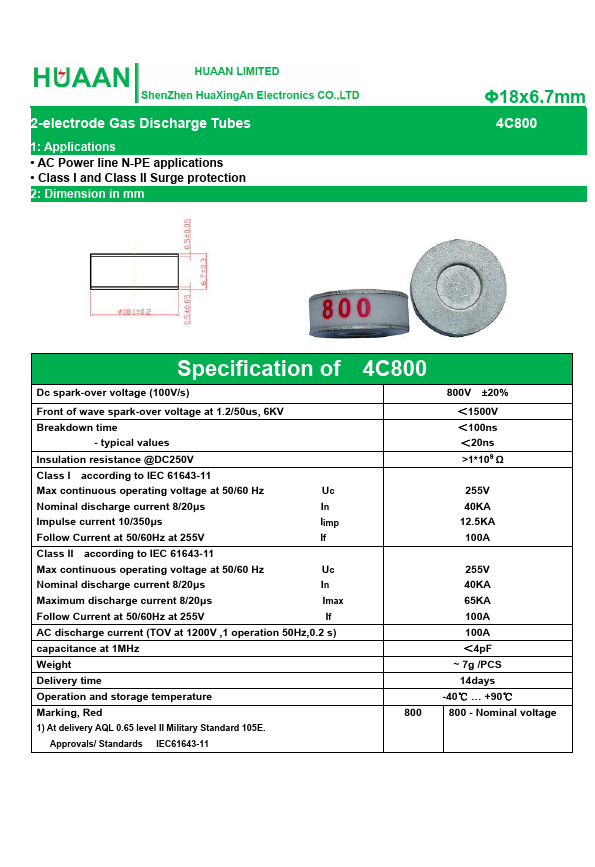

4C800
4C800 is 2-electrode Gas Discharge Tubes manufactured by HuaXingAn Electronics.
2-electrode Gas Discharge Tubes
1: Applications
- AC Power line N-PE applications
- Class I and Class II Surge protection 2: Dimension in mm
Φ18x6.7mm
Specification of
Dc spark-over voltage (100V/s)
Front of wave spark-over voltage at 1.2/50us, 6KV
Breakdown time
- typical values
Insulation resistance @DC250V
Class I according to IEC 61643-11
Max continuous operating voltage at 50/60 Hz
Uc
Nominal discharge current 8/20μs
In
Impulse current 10/350μs
Iimp
Follow Current at 50/60Hz at 255V
If
Class II according to IEC 61643-11
Max continuous operating voltage at 50/60 Hz
Uc
Nominal discharge current 8/20μs
In
Maximum discharge current 8/20μs
Imax
Follow Current at 50/60Hz at 255V
If
AC discharge current (TOV at 1200V ,1 operation 50Hz,0.2 s) capacitance at 1MHz
Weight
Delivery time
Operation and storage temperature
Marking, Red
1) At delivery AQL 0.65 level II Military Standard 105E.
Approvals/ Standards IEC61643-11
800V ±20%
＜1500V ＜100ns ＜20ns >1- 109 Ω
255V 40KA 12.5KA...
