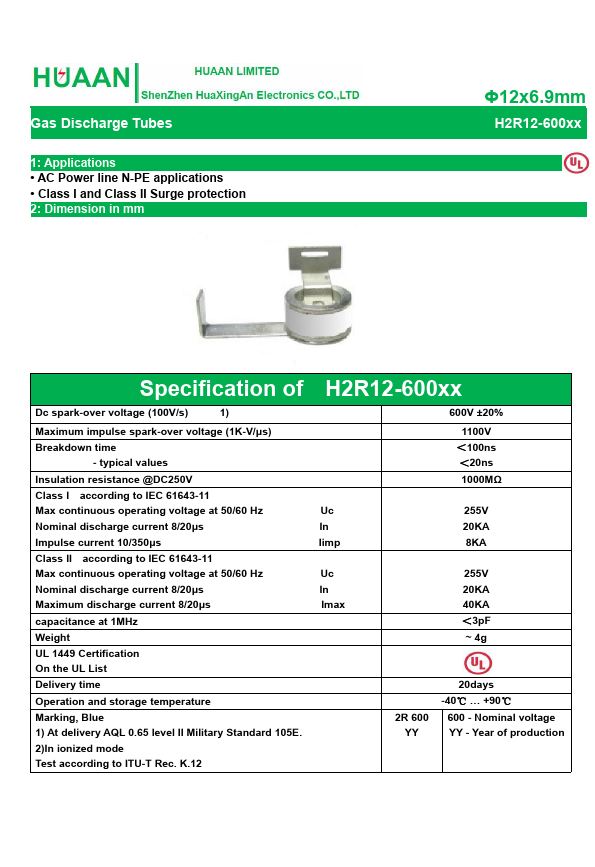

H2R12-600xx Datasheet | HuaXingAn Electronics

Gas Discharge Tubes 1: Applications - AC Power line N-PE applications - Class I and Class II Surge protection 2: Dimension in mm Φ12x6.9mm Specification of Dc spark-over voltage (100V/s) 1) Maximum impulse spark-over voltage (1K-V/μs) Breakdown time - typical values Insulation resistance @DC250V Class I according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Nominal discharge current 8/20μs Impulse current 10/350μs Class II according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Nominal discharge current 8/20μs Maximum discharge current 8/20μs capacitance at 1MHz Weight UL 1449 Certification On the UL List Delivery time Operation and storage temperature Marking, Blue 1) At delivery AQL 0.65 level II Military Standard 105E. 2)In ionized mode Test according to ITU-T Rec. K.12 600V ±20% 1100V ＜100ns ＜20ns 1000MΩ Uc In Iimp 255V 20KA 8KA Uc In Imax 255V 20KA 40KA ＜3p F ~ 4g 2R 600 YY 20days -40℃ … +90℃ - Nominal voltage YY - Year of production 3:Application Figure Φ12x6.9mm What can we do for our GDT? 1:We Can customize voltage: 230V,500V,800V...etc 2:We Can developed low impulse GDT 3: We Can customize Uc,In, Imax , limp ,If,TOV. 4: We Can developed cut off follow current 100A within 1 cycle when passing zero under AC260V(50Hz) 5:We Can customize multi-gap GDT used in DC or AC(L-N) over voltage protection 6:We Can customize GDT shape, marking, special Lead wire 7: We Can surpass our GDT petitors,help you pass the ` GDT test project & improve the GDT you currently use. 8:We can provide fast GDT delivery,Solve your GDT delivery time problem 9:We can help you analyze the petitor’s parameters and tell you our perfect replacement GDT part number. Shen Zhen Hua Xing An Electronics CO.,LTD HUAAN LIMITED .huaandz. Tel: +86-755-27465585 Email:...
