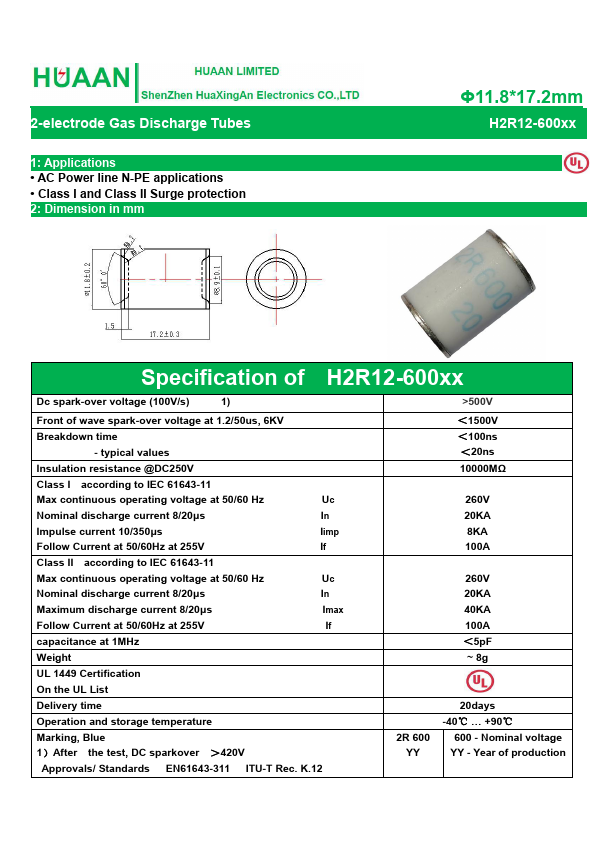

H2R12-600xx Datasheet | HuaXingAn Electronics

2-electrode Gas Discharge Tubes 1: Applications - AC Power line N-PE applications - Class I and Class II Surge protection 2: Dimension in mm Φ11.8- 17.2mm Specification of H2R12-600xx Dc spark-over voltage (100V/s) 1) >500V Front of wave spark-over voltage at 1.2/50us, 6KV Breakdown time - typical values Insulation resistance @DC250V Class I according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Uc Nominal discharge current 8/20μs In Impulse current 10/350μs Iimp Follow Current at 50/60Hz at 255V If Class II according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Uc Nominal discharge current 8/20μs In Maximum discharge current 8/20μs Imax Follow Current at 50/60Hz at 255V If capacitance at 1MHz Weight UL 1449 Certification On the UL List Delivery time Operation and storage temperature Marking, Blue 1）After the test, DC sparkover ＞420V Approvals/ Standards EN61643-311 ITU-T Rec. K.12 ＜1500V ＜100ns ＜20ns...
