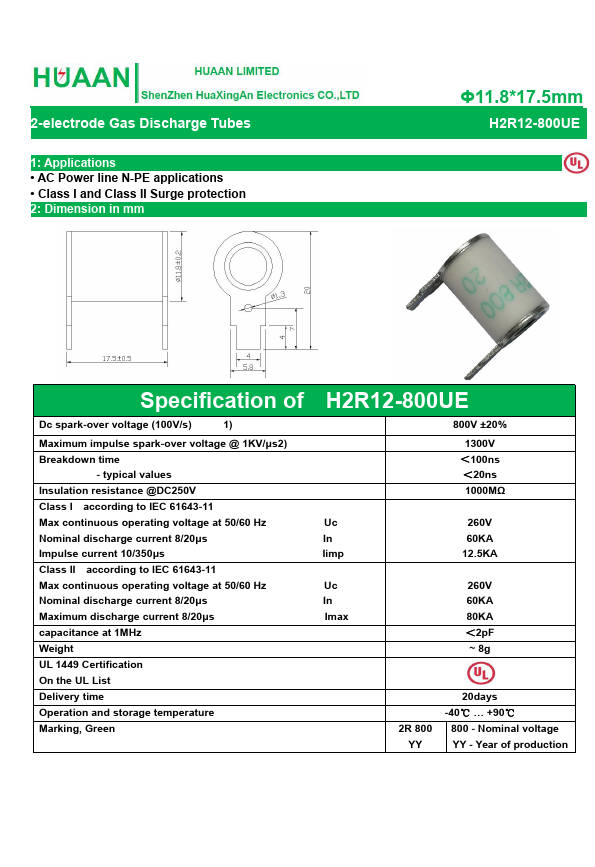

H2R12-800UE Datasheet | HuaXingAn Electronics

2-electrode Gas Discharge Tubes 1: Applications - AC Power line N-PE applications - Class I and Class II Surge protection 2: Dimension in mm Φ11.8- 17.5mm Specification of Dc spark-over voltage (100V/s) 1) Maximum impulse spark-over voltage @ 1KV/μs2) Breakdown time - typical values Insulation resistance @DC250V Class I according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Nominal discharge current 8/20μs Impulse current 10/350μs Class II according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Nominal discharge current 8/20μs Maximum discharge current 8/20μs capacitance at 1MHz Weight UL 1449 Certification On the UL List Delivery time Operation and storage temperature Marking, Green 800V ±20% 1300V ＜100ns ＜20ns 1000MΩ Uc In Iimp 260V 60KA 12.5KA Uc In Imax 260V 60KA 80KA ＜2p F ~ 8g 2R 800 YY 20days -40℃ … +90℃ - Nominal voltage YY - Year of production 3:Application Figure Φ11.8- 17.5mm What can we do for our GDT? 1:We Can customize voltage: 230V,500V,800V...etc 2:We Can developed low impulse GDT 3: We Can customize Uc,In, Imax , limp ,If,TOV. 4: We Can developed cut off follow current 100A within 1 cycle when passing zero under AC260V(50Hz) 5:We Can customize multi-gap GDT used in DC or AC(L-N) over voltage protection 6:We Can customize GDT shape, marking, special Lead wire 7: We Can surpass our GDT petitors,help you pass the ` GDT test project & improve the GDT you currently use. 8:We can provide fast GDT delivery,Solve your GDT delivery time problem 9:We can help you analyze the petitor’s parameters and tell you our perfect replacement GDT part number. Shen Zhen Hua Xing An Electronics CO.,LTD HUAAN LIMITED .huaandz. Tel: +86-755-27465585 Email:...
