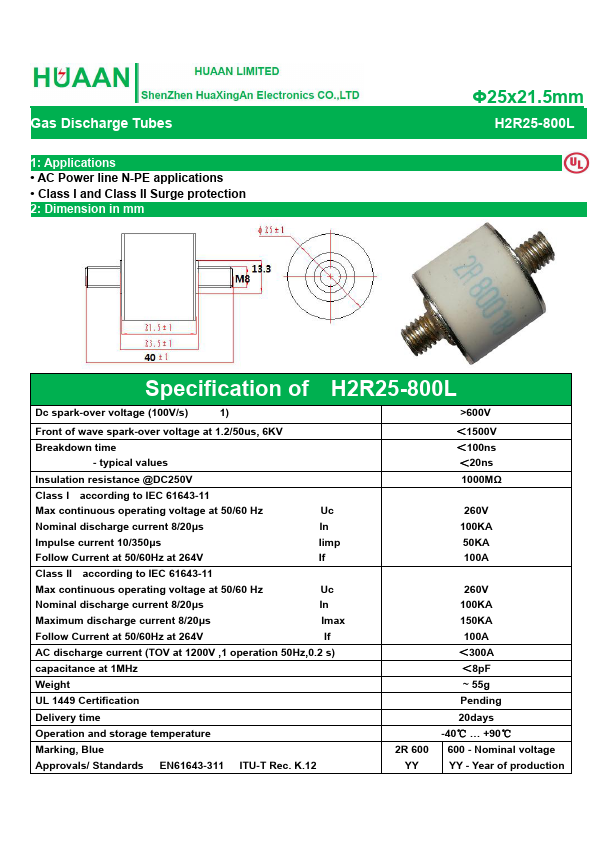

H2R25-800L
H2R25-800L is Gas Discharge Tubes manufactured by HuaXingAn Electronics.
Gas Discharge Tubes
1: Applications
- AC Power line N-PE applications
- Class I and Class II Surge protection 2: Dimension in mm
Φ25x21.5mm
Specification of H2R25-800L
Dc spark-over voltage (100V/s)
1)
>600V
Front of wave spark-over voltage at 1.2/50us, 6KV
Breakdown time
- typical values
Insulation resistance @DC250V
Class I according to IEC 61643-11
Max continuous operating voltage at 50/60 Hz
Uc
Nominal discharge current 8/20μs
In
Impulse current 10/350μs
Iimp
Follow Current at 50/60Hz at 264V
If
Class II according to IEC 61643-11
Max continuous operating voltage at 50/60 Hz
Uc
Nominal discharge current 8/20μs
In
Maximum discharge current 8/20μs
Imax
Follow Current at 50/60Hz at 264V
If
AC discharge current (TOV at 1200V ,1 operation 50Hz,0.2 s) capacitance at 1MHz
Weight
UL 1449 Certification
Delivery time
Operation and storage temperature
Marking, Blue
Approvals/ Standards EN61643-311 ITU-T Rec. K.12
＜1500V ＜100ns ＜20ns 1000MΩ
260V 100KA 50KA...
