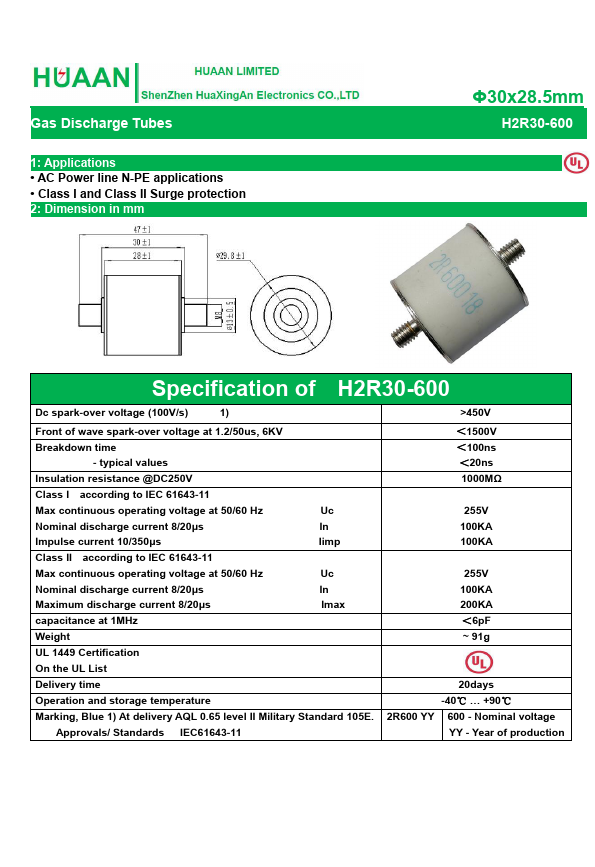

H2R30-600
H2R30-600 is Gas Discharge Tubes manufactured by HuaXingAn Electronics.
Gas Discharge Tubes
1: Applications
- AC Power line N-PE applications
- Class I and Class II Surge protection 2: Dimension in mm
Φ30x28.5mm
Specification of H2R30-600
Dc spark-over voltage (100V/s)
1)
>450V
Front of wave spark-over voltage at 1.2/50us, 6KV
Breakdown time
- typical values
Insulation resistance @DC250V
Class I according to IEC 61643-11
Max continuous operating voltage at 50/60 Hz
Uc
Nominal discharge current 8/20μs
In
Impulse current 10/350μs
Iimp
Class II according to IEC 61643-11
Max continuous operating voltage at 50/60 Hz
Uc
Nominal discharge current 8/20μs
In
Maximum discharge current 8/20μs
Imax capacitance at 1MHz
Weight
UL 1449 Certification
On the UL List
Delivery time
Operation and storage temperature
Marking, Blue 1) At delivery AQL 0.65 level II Military Standard 105E.
Approvals/ Standards IEC61643-11
＜1500V ＜100ns ＜20ns 1000MΩ
255V 100KA 100KA
255V 100KA 200KA ＜6p F ~ 91g
20days -40℃ … +90℃ 2R600 YY 600
- Nominal...
