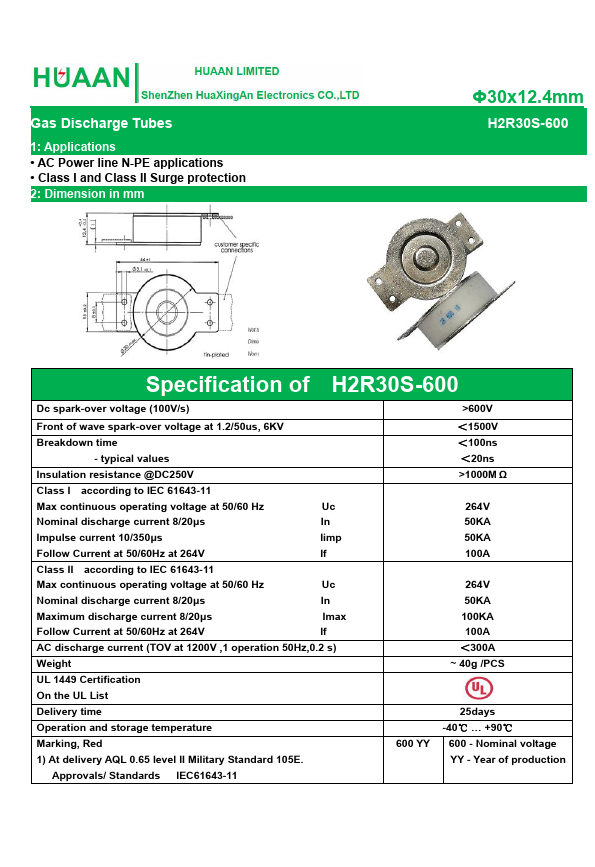

H2R30S-600
H2R30S-600 is Gas Discharge Tubes manufactured by HuaXingAn Electronics.
Gas Discharge Tubes
1: Applications
- AC Power line N-PE applications
- Class I and Class II Surge protection 2: Dimension in mm
Φ30x12.4mm
Specification of H2R30S-600
Dc spark-over voltage (100V/s)
>600V
Front of wave spark-over voltage at 1.2/50us, 6KV
Breakdown time
- typical values
Insulation resistance @DC250V
Class I according to IEC 61643-11
Max continuous operating voltage at 50/60 Hz
Uc
Nominal discharge current 8/20μs
In
Impulse current 10/350μs
Iimp
Follow Current at 50/60Hz at 264V
If
Class II according to IEC 61643-11
Max continuous operating voltage at 50/60 Hz
Uc
Nominal discharge current 8/20μs
In
Maximum discharge current 8/20μs
Imax
Follow Current at 50/60Hz at 264V
If
AC discharge current (TOV at 1200V ,1 operation 50Hz,0.2 s)
Weight
UL 1449 Certification
On the UL List
Delivery time
Operation and storage temperature
Marking, Red
1) At delivery AQL 0.65 level II Military Standard 105E.
Approvals/ Standards IEC61643-11
＜1500V ＜100ns ＜20ns >1000M...
