H4R30-600L Datasheet | HuaXingAn Electronics

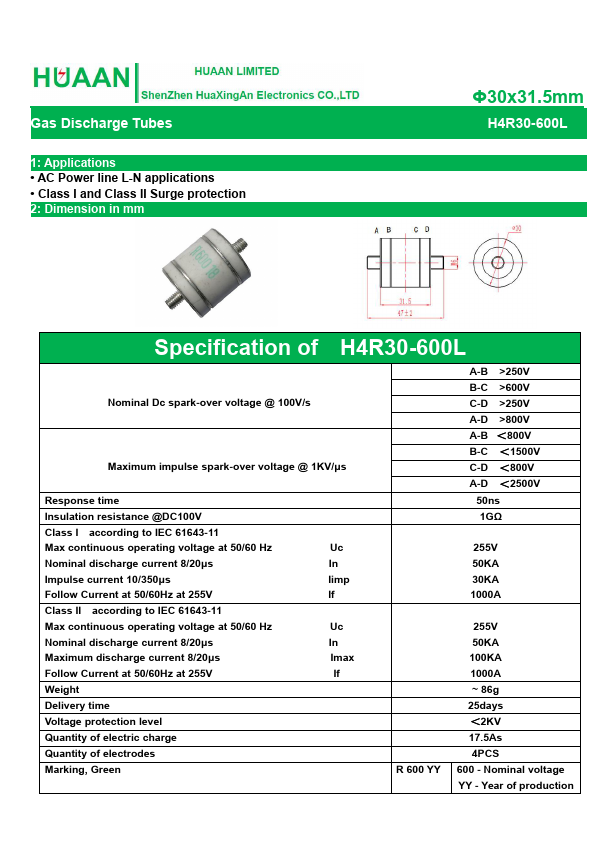

Gas Discharge Tubes 1: Applications - AC Power line L-N applications - Class I and Class II Surge protection 2: Dimension in mm 2: Dimension in mm Φ30x31.5mm Specification of H4R30-600L Nominal Dc spark-over voltage @ 100V/s Maximum impulse spark-over voltage @ 1KV/μs Response time Insulation resistance @DC100V Class I according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Nominal discharge current 8/20μs Impulse current 10/350μs Follow Current at 50/60Hz at 255V Class II according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Nominal discharge current 8/20μs Maximum discharge current 8/20μs Follow Current at 50/60Hz at 255V Weight Delivery time Voltage protection level Quantity of electric charge Quantity of electrodes Marking, Green Uc In Iimp If Uc In Imax If A-B >250V B-C >600V C-D >250V A-D >800V A-B ＜800V B-C ＜1500V C-D ＜800V A-D ＜2500V 50ns 1GΩ 255V 50KA 30KA 1000A R 600 YY 255V 50KA 100KA 1000A ~ 86g 25days ＜2KV 17.5As 4PCS 600 - Nominal voltage YY - Year of production 3:Application Figure ` Φ30x31.5mm What can we do for our GDT? 1:We Can customize voltage: 500V,800V...etc 2:We Can developed low impulse GDT 3: We Can customize Uc,In, Imax , limp ,If,TOV. 4: We Can developed cut off follow current 100A within 1 cycle when passing zero under AC260V(50Hz) 5:We Can customize multi-gap GDT used in DC or AC(L-N) over voltage protection 6:We Can customize GDT shape, marking, special Lead wire 7: We Can surpass our GDT petitors,help you pass the GDT test project & improve the GDT you currently use. 8:We can provide fast GDT delivery,Solve your GDT delivery time problem 9:We can help you analyze the petitor’s parameters and tell you our perfect replacement GDT part number. Shen Zhen Hua Xing An Electronics CO.,LTD HUAAN LIMITED .huaandz. Tel: +86-755-27465585 Email:...
