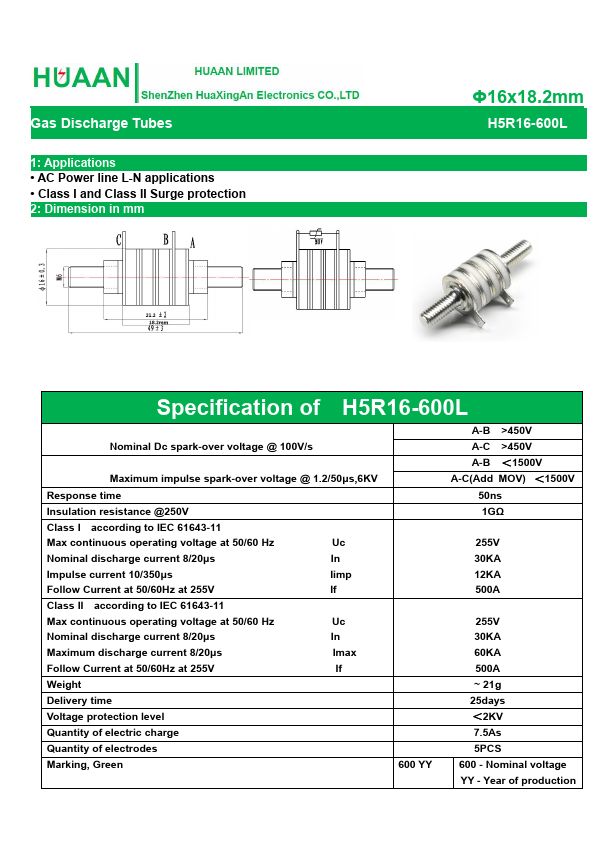

H5R16-600L Datasheet | HuaXingAn Electronics

Gas Discharge Tubes 1: Applications - AC Power line L-N applications - Class I and Class II Surge protection 2: Dimension in mm 2: Dimension in mm Φ16x18.2mm Specification of H5R16-600L Nominal Dc spark-over voltage @ 100V/s Maximum impulse spark-over voltage @ 1.2/50μs,6KV Response time Insulation resistance @250V Class I according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Uc Nominal discharge current 8/20μs In Impulse current 10/350μs Iimp Follow Current at 50/60Hz at 255V If Class II according to IEC 61643-11 Max continuous operating voltage at 50/60 Hz Uc Nominal discharge current 8/20μs In Maximum discharge current 8/20μs Imax Follow Current at 50/60Hz at 255V If Weight Delivery time Voltage protection level Quantity of electric charge Quantity of electrodes Marking, Green A-B >450V A-C >450V A-B ＜1500V A-C(Add MOV) ＜1500V 50ns 1GΩ 255V 30KA 12KA 500A 600 YY 255V 30KA 60KA 500A ~ 21g 25days ＜2KV 7.5As 5PCS 600 - Nominal voltage...
