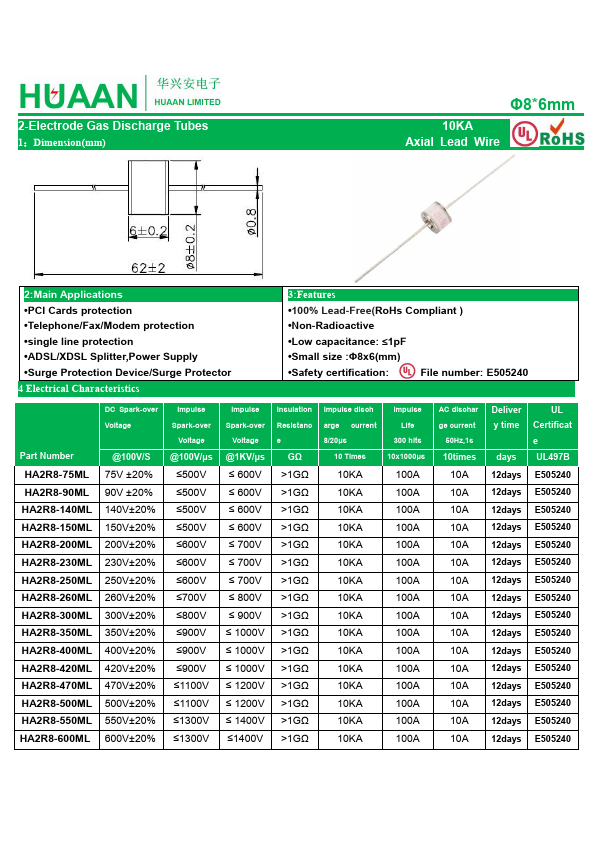

HA2R8-90ML
HA2R8-90ML is 2-Electrode Gas Discharge Tubes manufactured by HuaXingAn Electronics.
- Part of the HA2R8-75ML comparator family.
- Part of the HA2R8-75ML comparator family.
Features
- 100% Lead-Free(Ro Hs pliant )
- Non-Radioactive
- Low capacitance: ≤1p F
- Small size :Φ8x6(mm)
- Safety certification:
File number: E505240
DC Spark-over
Impulse
Impulse Insulation Impulse disch
Impulse AC dischar Deliver
Voltage
Spark-over Spark-over Resistanc arge current
Life ge current y time Certificat
Voltage
Voltage e
8/20μs
300 hits
50Hz,1s e
Part Number
@100V/S @100V/μs @1KV/μs
GΩ
10 Times
10x1000μs 10times days UL497B
HA2R8-75ML 75V ±20% ≤500V ≤ 600V >1GΩ
10KA
100A
10A 12days E505240
HA2R8-90ML 90V ±20% ≤500V ≤ 600V >1GΩ
10KA
100A
10A 12days E505240
HA2R8-140ML 140V±20% ≤500V ≤ 600V >1GΩ
10KA
100A
10A 12days E505240
HA2R8-150ML 150V±20% ≤500V ≤ 600V...
