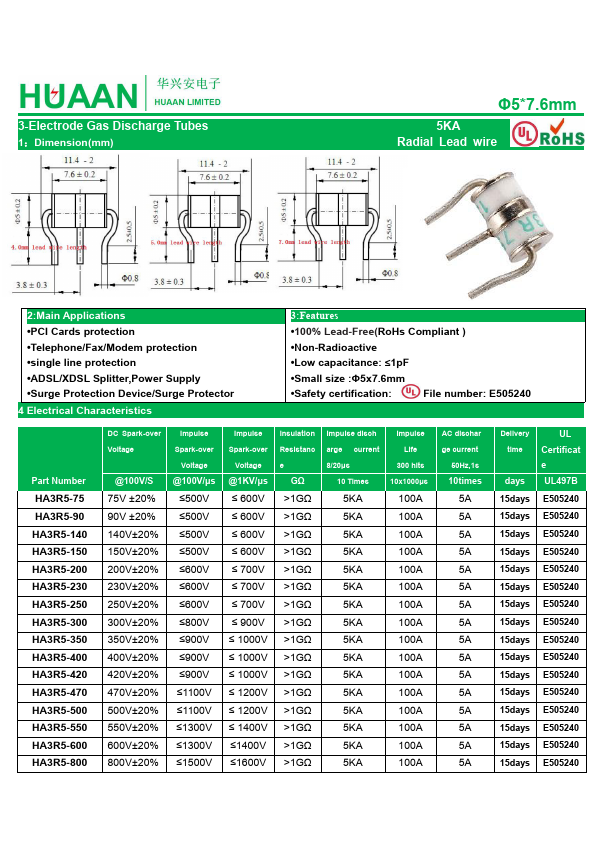

HA3R5-500
HA3R5-500 is 3-Electrode Gas Discharge Tubes manufactured by HuaXingAn Electronics.
- Part of the HA3R5-75 comparator family.
- Part of the HA3R5-75 comparator family.
Features
- 100% Lead-Free(Ro Hs pliant )
- Non-Radioactive
- Low capacitance: ≤1p F
- Small size :Φ5x7.6mm
- Safety certification:
File number: E505240
DC Spark-over
Impulse
Impulse Insulation Impulse disch
Impulse AC dischar
Delivery
Voltage
Spark-over Spark-over Resistanc arge current
Life ge current time Certificat
Voltage
Voltage e
8/20μs
300 hits
50Hz,1s e
Part Number
@100V/S @100V/μs @1KV/μs
GΩ
10 Times
10x1000μs
10times days UL497B
HA3R5-75 75V ±20% ≤500V ≤ 600V >1GΩ
5KA
100A
5A
15days E505240
HA3R5-90 90V ±20% ≤500V ≤ 600V >1GΩ
5KA
100A
5A
15days E505240
HA3R5-140 140V±20% ≤500V ≤ 600V...
