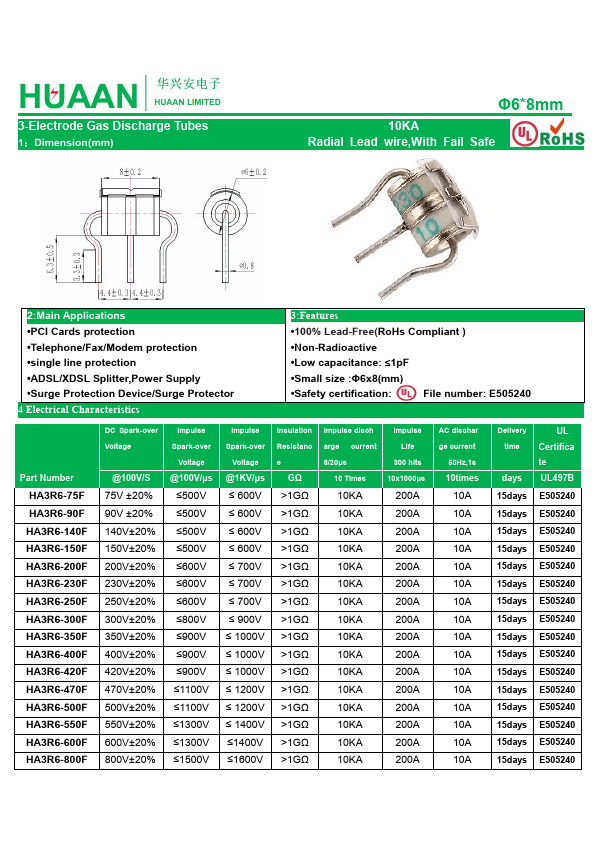

HA3R6-150F Datasheet | HuaXingAn Electronics

Features - 100% Lead-Free(Ro Hs pliant ) - Non-Radioactive - Low capacitance: ≤1p F - Small size :Φ6x8(mm) - Safety certification: File number: E505240 Part Number HA3R6-75F HA3R6-90F HA3R6-140F HA3R6-150F HA3R6-200F HA3R6-230F HA3R6-250F HA3R6-300F HA3R6-350F HA3R6-400F HA3R6-420F HA3R6-470F HA3R6-500F HA3R6-550F HA3R6-600F HA3R6-800F DC Spark-over Voltage @100V/S 75V ±20% 90V ±20% 140V±20% 150V±20% 200V±20% 230V±20% 250V±20% 300V±20% 350V±20% 400V±20% 420V±20% 470V±20% 500V±20% 550V±20% 600V±20% 800V±20% Impulse Spark-over Voltage @100V/μs ≤500V ≤500V ≤500V ≤500V ≤600V ≤600V ≤600V ≤800V ≤900V ≤900V ≤900V ≤1100V ≤1100V ≤1300V ≤1300V ≤1500V Impulse Spark-over Voltage @1KV/μs ≤ 600V ≤ 600V ≤ 600V ≤ 600V ≤ 700V ≤ 700V ≤ 700V ≤ 900V ≤ 1000V ≤ 1000V ≤ 1000V ≤ 1200V ≤ 1200V ≤ 1400V ≤1400V ≤1600V Insulation Resistanc e GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ Impulse disch arge current 8/20μs 10 Times 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA Impulse Life 300 hits 10x1000μs 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A AC dischar ge current 50Hz,1s 10times 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A Delivery time UL Certifica te days UL497B 15days E505240 15days E505240 15days E505240 15days...
