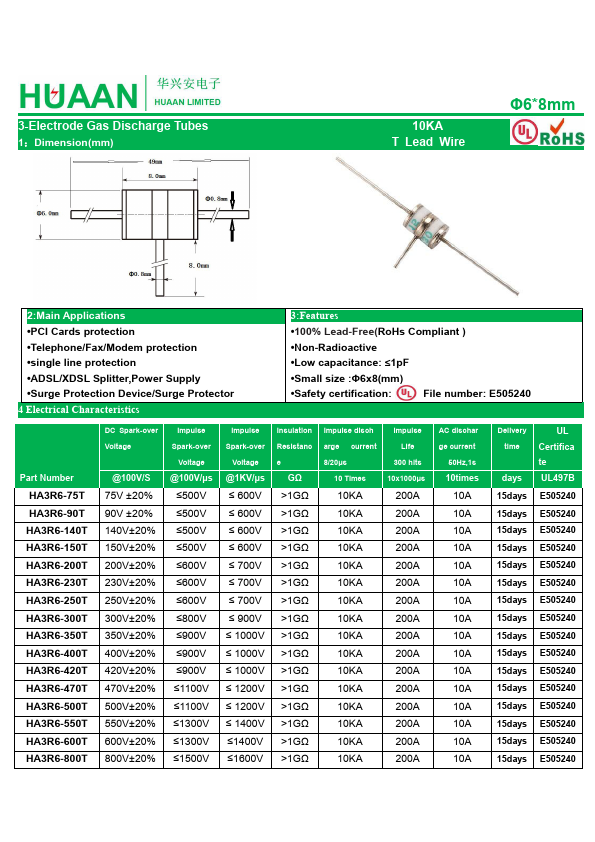

HA3R6-470T Datasheet | HuaXingAn Electronics

Features - 100% Lead-Free(Ro Hs pliant ) - Non-Radioactive - Low capacitance: ≤1p F - Small size :Φ6x8(mm) - Safety certification: File number: E505240 Part Number HA3R6-75T HA3R6-90T HA3R6-140T HA3R6-150T HA3R6-200T HA3R6-230T HA3R6-250T HA3R6-300T HA3R6-350T HA3R6-400T HA3R6-420T HA3R6-470T HA3R6-500T HA3R6-550T HA3R6-600T HA3R6-800T DC Spark-over Voltage @100V/S 75V ±20% 90V ±20% 140V±20% 150V±20% 200V±20% 230V±20% 250V±20% 300V±20% 350V±20% 400V±20% 420V±20% 470V±20% 500V±20% 550V±20% 600V±20% 800V±20% Impulse Spark-over Voltage @100V/μs ≤500V ≤500V ≤500V ≤500V ≤600V ≤600V ≤600V ≤800V ≤900V ≤900V ≤900V ≤1100V ≤1100V ≤1300V ≤1300V ≤1500V Impulse Spark-over Voltage @1KV/μs ≤ 600V ≤ 600V ≤ 600V ≤ 600V ≤ 700V ≤ 700V ≤ 700V ≤ 900V ≤ 1000V ≤ 1000V ≤ 1000V ≤ 1200V ≤ 1200V ≤ 1400V ≤1400V ≤1600V Insulation Resistanc e GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ Impulse disch arge current 8/20μs 10 Times 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA 10KA Impulse Life 300 hits 10x1000μs 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A 200A AC dischar ge current 50Hz,1s 10times 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A 10A Delivery time UL Certifica te days UL497B 15days E505240 15days E505240 15days E505240 15days...
