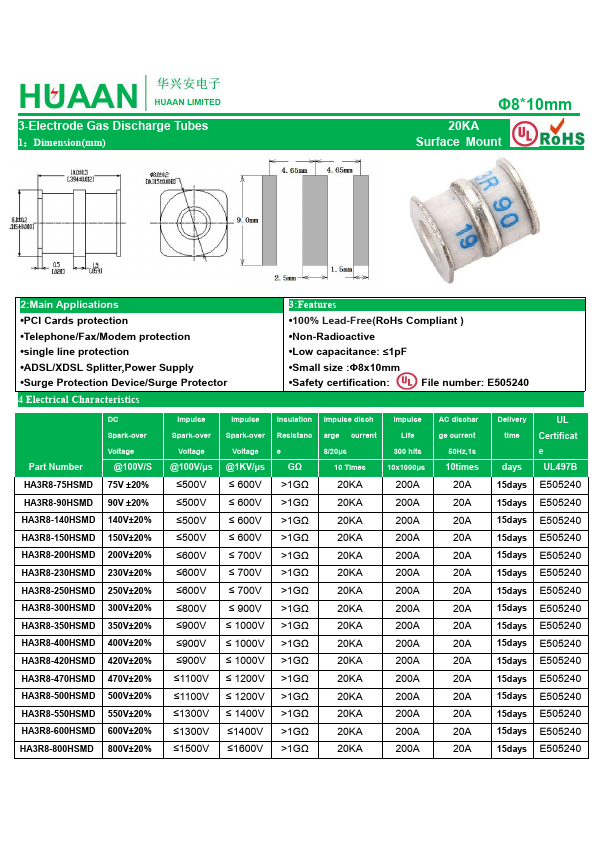

HA3R8-300HSMD Datasheet | HuaXingAn Electronics

Features - 100% Lead-Free(Ro Hs pliant ) - Non-Radioactive - Low capacitance: ≤1p F - Small size :Φ8x10mm - Safety certification: File number: E505240 Spark-over Voltage Part Number @100V/S HA3R8-75HSMD 75V ±20% HA3R8-90HSMD 90V ±20% HA3R8-140HSMD 140V±20% HA3R8-150HSMD 150V±20% HA3R8-200HSMD 200V±20% HA3R8-230HSMD 230V±20% HA3R8-250HSMD 250V±20% HA3R8-300HSMD 300V±20% HA3R8-350HSMD 350V±20% HA3R8-400HSMD 400V±20% HA3R8-420HSMD 420V±20% HA3R8-470HSMD 470V±20% HA3R8-500HSMD 500V±20% HA3R8-550HSMD 550V±20% HA3R8-600HSMD 600V±20% HA3R8-800HSMD 800V±20% Impulse Spark-over Voltage @100V/μs ≤500V ≤500V ≤500V ≤500V ≤600V ≤600V ≤600V ≤800V ≤900V ≤900V ≤900V ≤1100V ≤1100V ≤1300V ≤1300V ≤1500V Impulse Spark-over Voltage @1KV/μs ≤ 600V ≤ 600V ≤ 600V ≤ 600V ≤ 700V ≤ 700V ≤ 700V ≤ 900V ≤ 1000V ≤ 1000V ≤ 1000V ≤ 1200V ≤ 1200V ≤ 1400V ≤1400V ≤1600V Insulation Resistanc e GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ >1GΩ...
