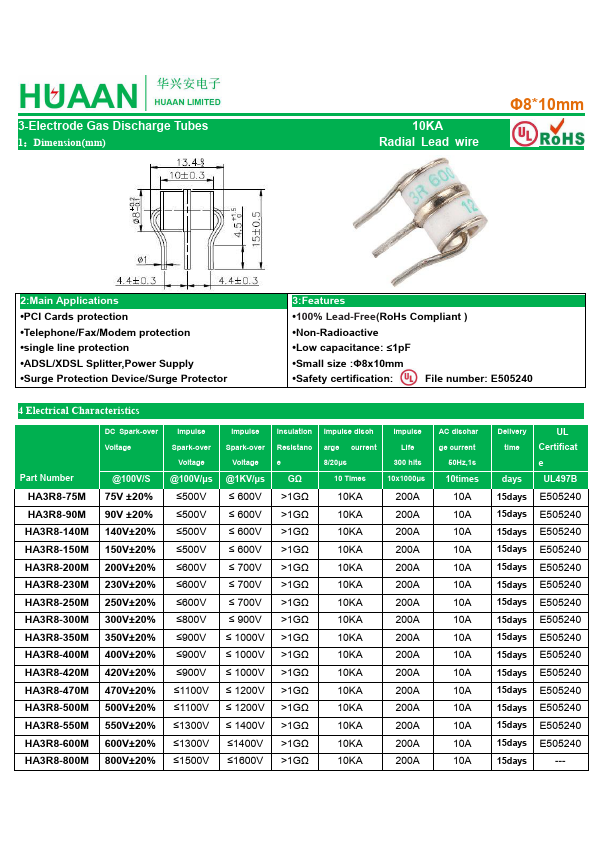

HA3R8-500M
HA3R8-500M is 3-Electrode Gas Discharge Tubes manufactured by HuaXingAn Electronics.
- Part of the HA3R8-75M comparator family.
- Part of the HA3R8-75M comparator family.
Features
- 100% Lead-Free(Ro Hs pliant )
- Non-Radioactive
- Low capacitance: ≤1p F
- Small size :Φ8x10mm
- Safety certification:
File number: E505240
4 Electrical Characteristics
DC Spark-over
Impulse
Impulse Insulation Impulse disch
Impulse AC dischar
Voltage
Spark-over Spark-over Resistanc arge current
Life ge current
Voltage
Voltage e
8/20μs
300 hits
50Hz,1s
Part Number
@100V/S @100V/μs @1KV/μs
GΩ
10 Times
10x1000μs
10times
HA3R8-75M 75V ±20% ≤500V ≤ 600V >1GΩ
10KA
200A
10A
HA3R8-90M 90V ±20% ≤500V ≤ 600V >1GΩ
10KA
200A
10A
HA3R8-140M 140V±20% ≤500V ≤ 600V >1GΩ
10KA
200A
10A
HA3R8-150M 150V±20% ≤500V ≤ 600V...
